61060-2 | AMP

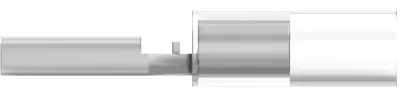

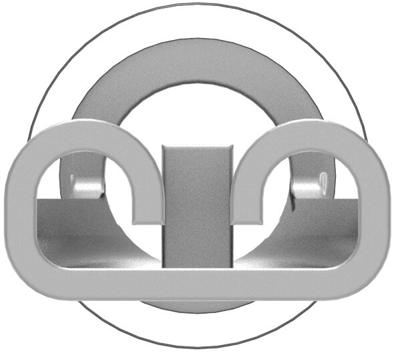

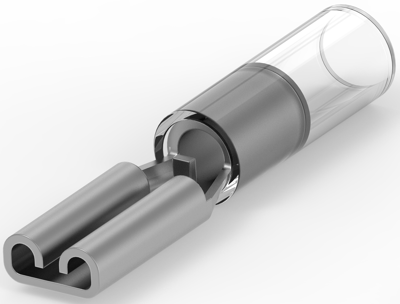

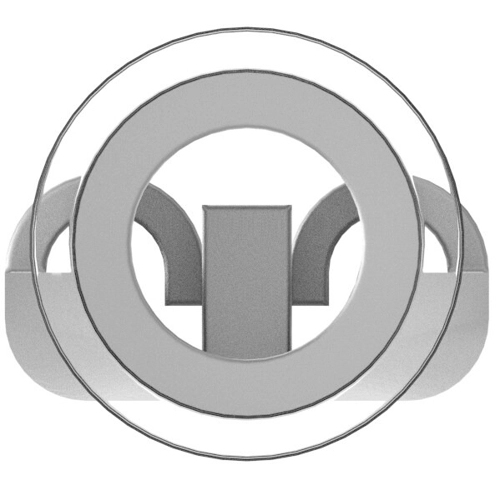

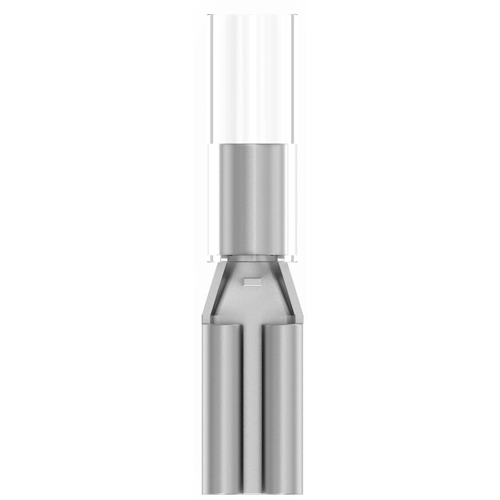

Insulated flat plug sleeve, 2.79 x 0.51 mm, 0.26 to 0.96 mm², AWG 22 to 18, brass, tin-plated, transparent, 61060-2
Unit Price (€ / pc.)
0.4522 € *
Standard delivery time from the manufacturer is: 38 Weeks
Flat receptacle, 61060-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.26 -0.96 mm², Wire Size: 509 – 1900 CMA, Mating Tab Width: 2.79 mm, Operating Temperature Range: 105 °C, RU (UL Component Program): No, Packaging Quantity: 5000, Packaging Method: Reel, Barrel Color: Clear
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 2.79 x 0.51 mm | |
| Material | brass, tin-plated | |
| Isolated | Yes | |
| Insulation colour | transparent | |
| Connection | crimp connection | |
| Cable cross-section | 0.26 to 0.96 mm² | |
| AWG cross-section | AWG 22 to 18 | |
| Length | 18.64 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
