60851-3 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 3.31 to 5.26 mm², AWG 12 to 10, brass, tin-plated, 60851-3

Order No.: 34P8615
EAN: 4099889624908
MPN:
60851-3
Series: FASTON

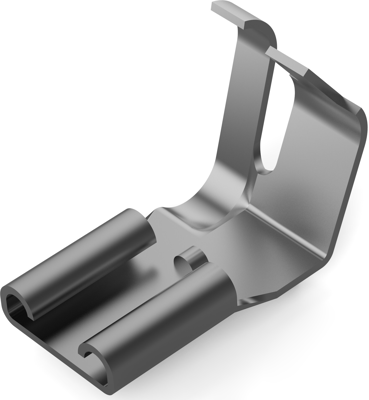

60851-3 AMP Receptacles Image 1

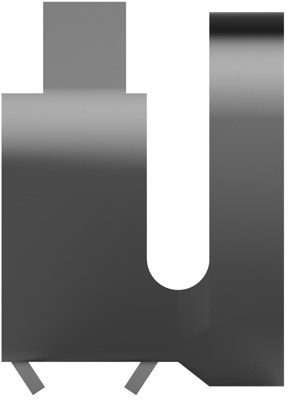

60851-3 AMP Receptacles Image 2

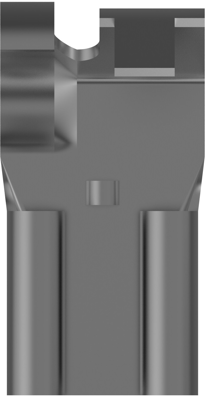

60851-3 AMP Receptacles Image 3

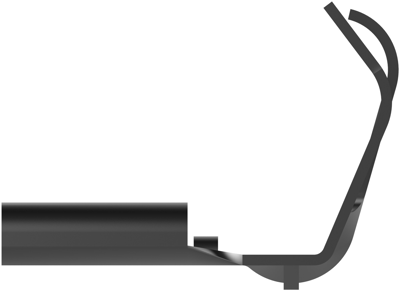

60851-3 AMP Receptacles Image 4

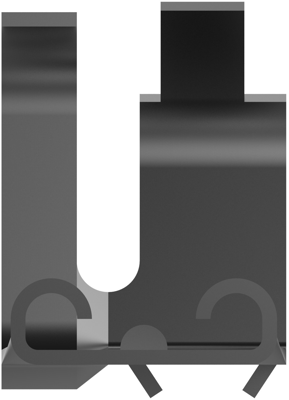

60851-3 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.3689 € *
Available in 5 Days: 1,002 pcs. - if ordered today
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3689 €
10 pcs.
0.3332 €
25 pcs.
0.3213 €
50 pcs.
0.2868 €
*incl. VAT plus shipping costs
Subject to prior sale

Flat receptacle, 60851-3, TE Connectivity

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: Tab-Lok, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.46 mm, Wire Size: 12 – 10 AWG, Wire Size: 3.31 – 5.26 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 1000, Packaging Method: Loose Piece/Carton, Comment: Pre-Crimped Barrel

Technical specifications
Filter Property Value
Suitable for 6.35 x 0.81 mm
Cable cross-section 3.31 to 5.26 mm²
Material brass, tin-plated
Isolated No
Version flat plug sleeve
AWG cross-section AWG 12 to 10
Length 17.02 mm
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
