60601-1 | AMP

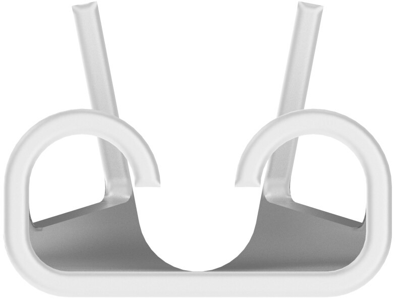

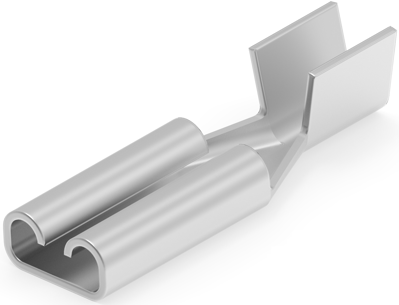

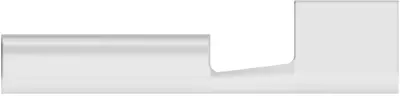

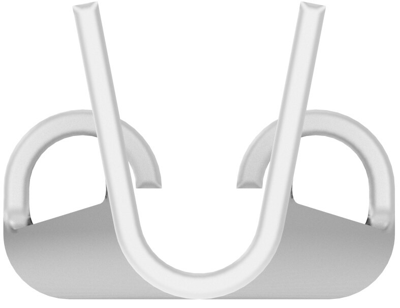

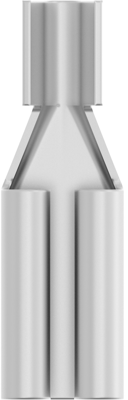

Uninsulated flat plug sleeve, 2.79 x 0.81 mm, 0.51 to 0.82 mm², AWG 20 to 18, brass, tin-plated, 60601-1
Unit Price (€ / pc.)
0.0536 € *
Standard delivery time from the manufacturer is: 25 Weeks
Flat receptacle, 60601-1, TE Connectivity
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: Without, Receptacle Terminal Stock Thickness: 0.25 mm, Wire Size: 20 – 18 AWG, Wire Size: 0.51 -0.82 mm², Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 25000, Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 2.79 x 0.81 mm | |
| Material | brass, tin-plated | |
| Isolated | No | |
| Connection | crimp connection | |
| Cable cross-section | 0.51 to 0.82 mm² | |
| AWG cross-section | AWG 20 to 18 | |
| Length | 12.07 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
