60415-1 | AMP
Uninsulated flat plug sleeve, 2.8 x 0.3 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, tin-plated, 60415-1
Unit Price (€ / pc.)
0.0547 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
2,463.30 € *
*incl. VAT plus shipping costs
**Subject to prior sale
45000 pcs.
0.0547 €

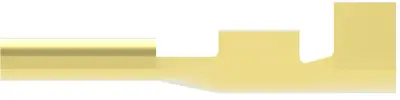

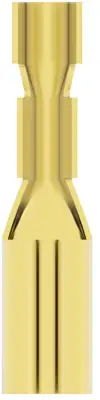

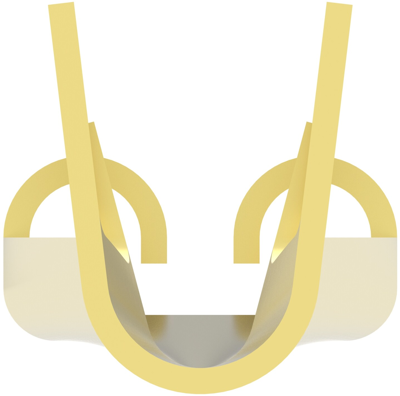

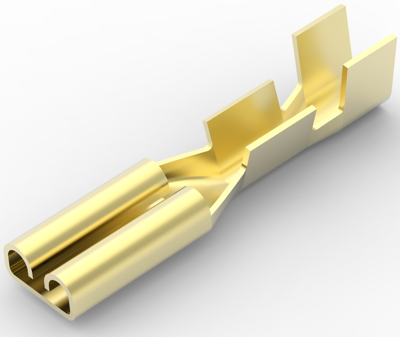

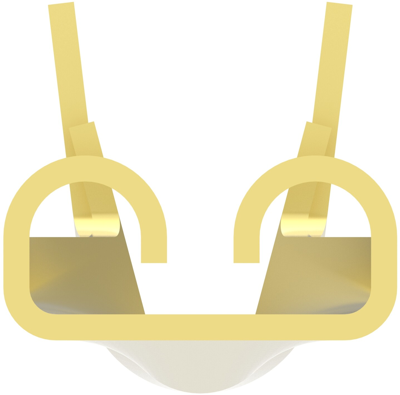

Flat receptacle, 60415-1, TE Connectivity
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.25 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 -0.82 mm², Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.3 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 15000, Packaging Method: Strip/Reel
Technical specifications
| Isolated | No | |
| AWG cross-section | AWG 22 to 18 | |
| Length | 16.13 mm | |
| Cable cross-section | 0.32 to 0.82 mm² | |
| Version | flat plug sleeve | |
| Material | brass, tin-plated | |
| Connection | crimp connection | |
| Suitable for | 2.8 x 0.3 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
