60295-1 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, 60295-1

Order No.: 34P7707
EAN: 4099889619676
MPN:
60295-1
Series: FASTIN-FASTON

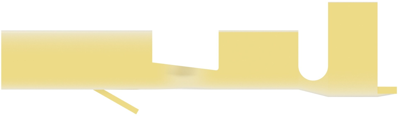

60295-1 AMP Receptacles Image 1

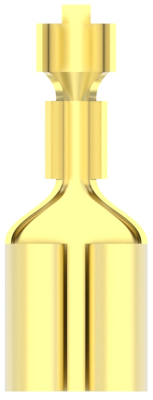

60295-1 AMP Receptacles Image 2

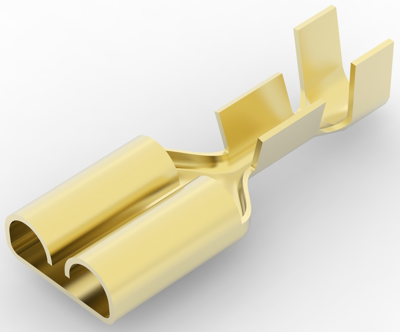

60295-1 AMP Receptacles Image 3

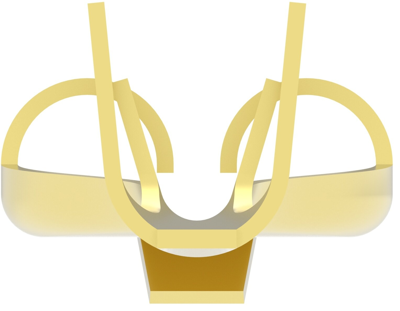

60295-1 AMP Receptacles Image 4

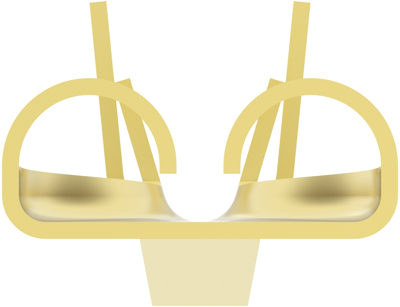

60295-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1559 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
3,741.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
24000 pcs.
0.1559 €

Quick disconnect, 60295-1, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 – .82 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 12000, Quick Disconnect Packaging Method: Strip/Reel, Comment: Without Dimple

Technical specifications
Isolated No
AWG cross-section AWG 22 to 18
Length 21.46 mm
Cable cross-section 0.32 to 0.82 mm²
Version flat plug sleeve
Material brass
Connection crimp connection
Suitable for 6.35 x 0.81 mm
Logistics
Country of origin CZ
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
