60290-2 | AMP

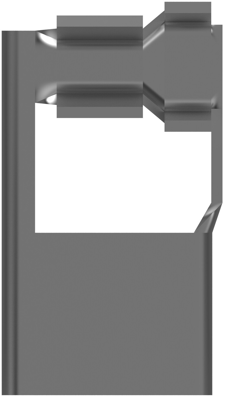

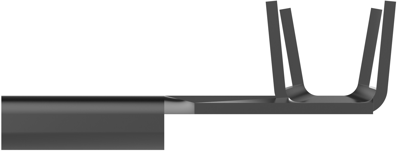

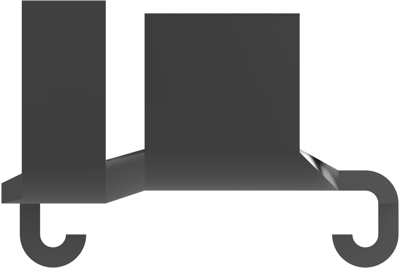

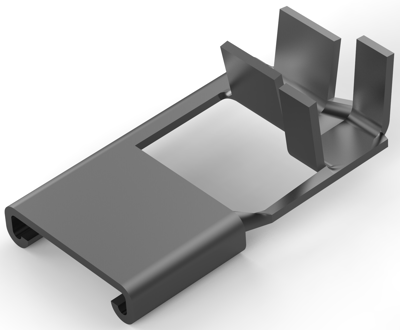

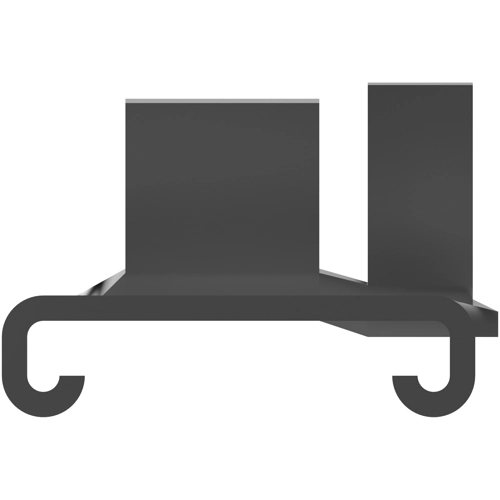

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, tin-plated, 60290-2
Unit Price (€ / pc.)
0.2011 € *
Available in 5 Days: 12,000 pcs. - if ordered today
Total Price:
20.11 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2011 €
250 pcs.
0.1856 €
500 pcs.
0.1725 €
1000 pcs.
0.1559 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat receptacle, 60290-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 3000, Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 6.35 x 0.81 mm | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 18 to 14 | |
| Version | flat plug sleeve | |
| Isolated | No | |
| Cable cross-section | 0.82 to 2.08 mm² | |
| Length | 11.6 mm | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
