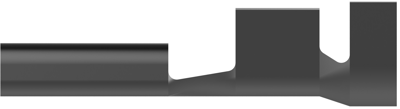

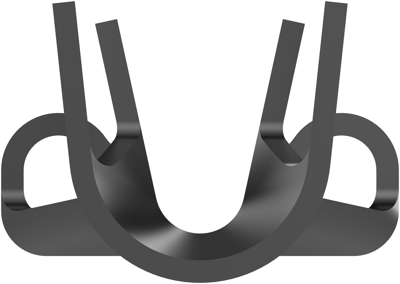

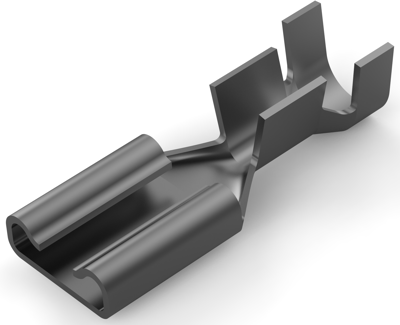

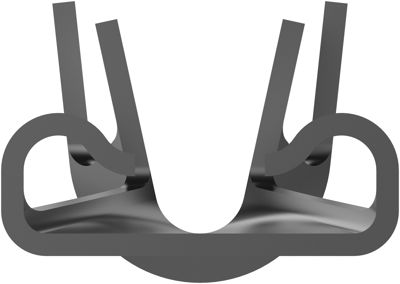

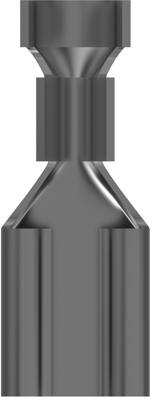

60196-3 | AMP
Uninsulated flat plug sleeve, 4.75 x 0.81 mm, 0.51 to 1.31 mm², AWG 20 to 16, brass, tin-plated, 60196-3
Unit Price (€ / pc.)
0.0619 € *
Available in 5 Days: 20,054 pcs. - if ordered today
Flat receptacle, 60196-3, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 20 – 16 AWG, Wire Size: 0.51 – 1.31 mm², Mating Tab Width: 4.75 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 1000, Packaging Method: Loose Piece/Carton
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| AWG cross-section | AWG 20 to 16 | |
| Connection | crimp connection | |
| Length | 14.99 mm | |
| Cable cross-section | 0.51 to 1.31 mm² | |
| Suitable for | 4.75 x 0.81 mm | |
| Version | flat plug sleeve | |
| Material | brass, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
