60118-1 | AMP

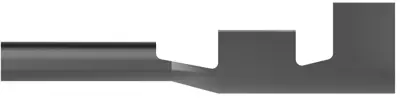

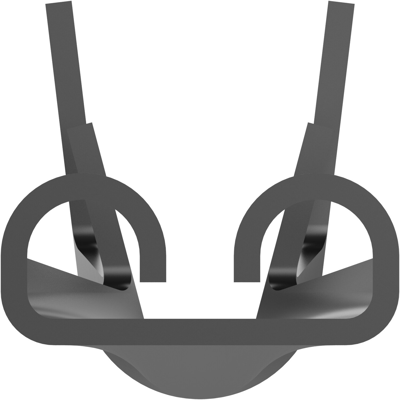

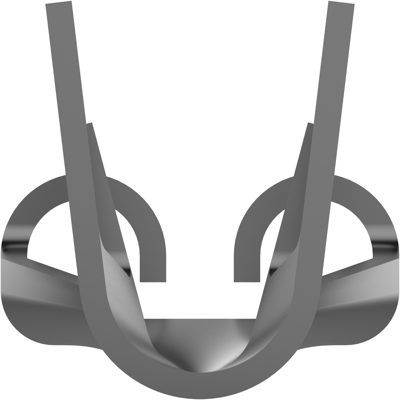

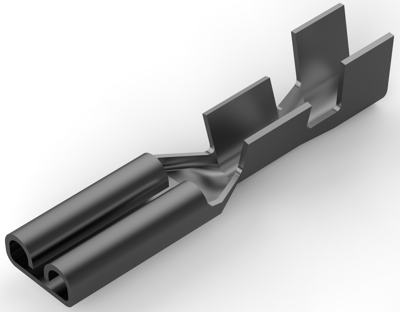

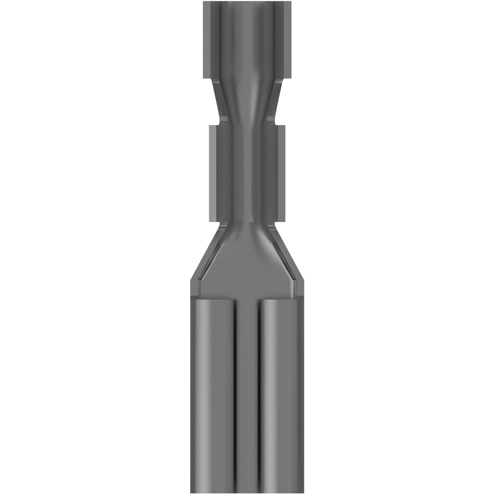

Uninsulated flat plug sleeve, 2.8 x 0.41 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, tin-plated, 60118-1
Unit Price (€ / pc.)
0.0500 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
2,249.10 € *
*incl. VAT plus shipping costs
**Subject to prior sale
45000 pcs.
0.0500 €
Quick disconnect, 60118-1, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.25 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 – .82 mm², Quick Disconnect Mating Tab Width: 2.8 mm, Quick Disconnect Mating Tab Thickness: 0.41 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 15000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Isolated | No | |
| AWG cross-section | AWG 22 to 18 | |
| Length | 16.13 mm | |
| Cable cross-section | 0.32 to 0.82 mm² | |
| Version | flat plug sleeve | |
| Material | brass, tin-plated | |
| Connection | crimp connection | |
| Suitable for | 2.8 x 0.41 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
