6-160449-6 | AMP

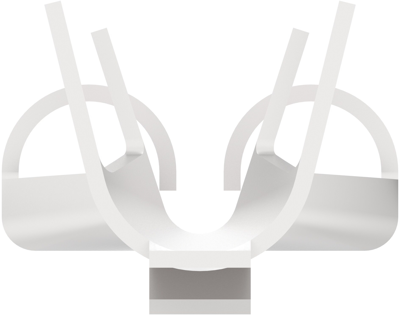

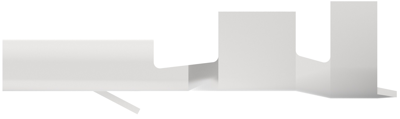

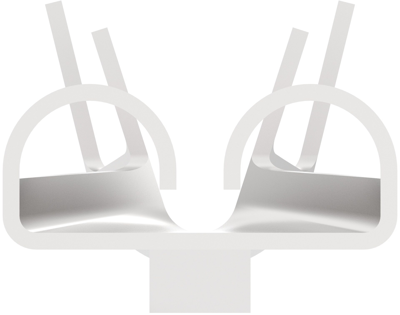

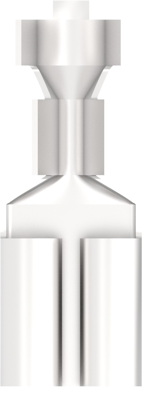

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.03 to 2.62 mm², AWG 17 to 13, brass, silver-plated, 6-160449-6
Order No.: 34P7657
EAN: 4099889619386
MPN:
6-160449-6
Unit Price (€ / pc.)
0.4760 € *
Available in 5 Days: 4,500 pcs. - if ordered today
Quick disconnect, 6-160449-6, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Silver, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.33 mm, Wire Size: 17 – 13 AWG, Wire Size: 1.03 – 2.62 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Packaging Quantity: 500, Quick Disconnect Packaging Method: Loose Piece/Carton, Line: FASTON .250
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, silver-plated | |
| Connection | crimp connection | |
| AWG cross-section | AWG 17 to 13 | |
| Isolated | No | |
| Length | 19.2 mm | |
| Suitable for | 6.35 x 0.81 mm | |
| Version | flat plug sleeve | |
| Cable cross-section | 1.03 to 2.62 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
