521600-2 | AMP

Insulated flat plug sleeve, 4.75 x 0.81 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, tin-plated, natural, 521600-2

Order No.: 35P4587
EAN: 4099889627978
MPN:
521600-2

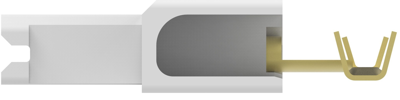

521600-2 AMP Receptacles Image 1

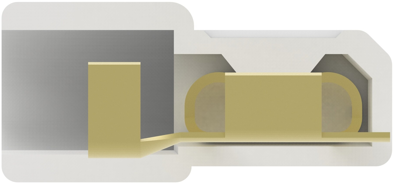

521600-2 AMP Receptacles Image 2

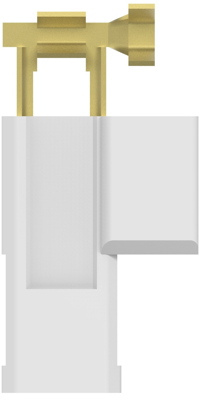

521600-2 AMP Receptacles Image 3

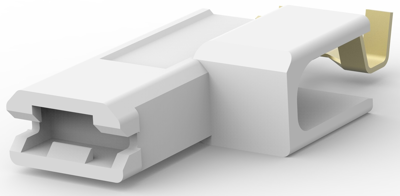

521600-2 AMP Receptacles Image 4

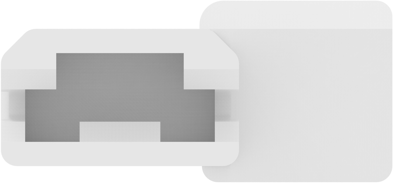

521600-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Available in 5 Days: 316,800 pcs. - if ordered today
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3213 €
10 pcs.
0.2927 €
25 pcs.
0.2725 €
50 pcs.
0.2475 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick disconnect, 521600-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Voltage (Max): 600 V, Insulation Material: Nylon, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: Tab-Lok, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.33 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 – .82 mm², Quick Disconnect Mating Tab Width: 4.75 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 150 °C, UL Rating: Listed, Packaging Quantity: 2400, Quick Disconnect Packaging Method: Strip/Reel, Barrel Color: Natural

Technical specifications
Filter Property Value
Suitable for 4.75 x 0.81 mm
Material brass, tin-plated
AWG cross-section AWG 22 to 18
Version flat plug sleeve
Isolated Yes
Cable cross-section 0.32 to 0.82 mm²
Insulation colour natural
Length 23.16 mm
Connection crimp connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
