521282-2 | AMP
Insulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, tin-plated, natural, 521282-2
Unit Price (€ / pc.)
0.2440 € *
Standard delivery time from the manufacturer is: 21 Weeks

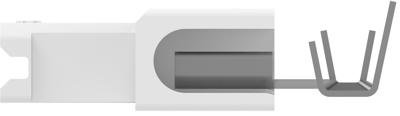

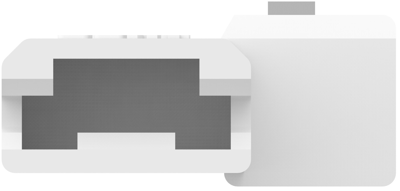

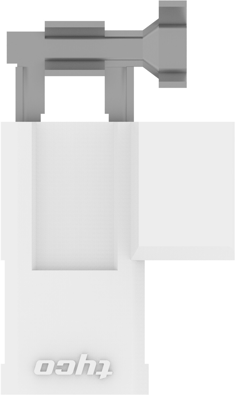

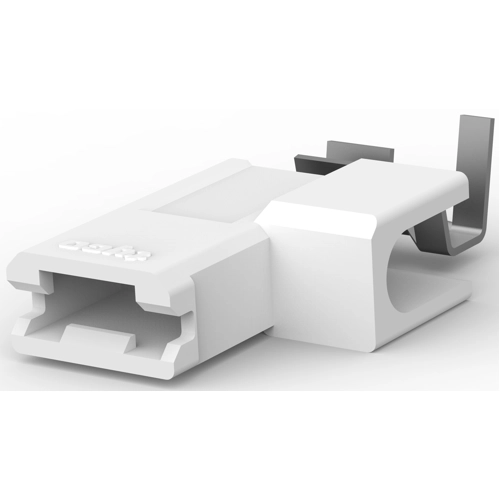

Flat receptacle, 521282-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 600 V, Insulation Material: Nylon, Fully Insulated: Yes, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: Tab-Lok, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 150 °C, UL Flammability Rating: UL 94V-0, Packaging Quantity: 1800, Packaging Method: Strip/Reel, Barrel Color: Natural
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 6.35 x 0.81 mm | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 18 to 14 | |
| Version | flat plug sleeve | |
| Isolated | Yes | |
| Cable cross-section | 0.82 to 2.08 mm² | |
| Insulation colour | natural | |
| Length | 22.99 mm | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
