5-160491-1 | AMP

Uninsulated flat plug sleeve, 4.75 x 0.81 mm, 1.03 to 2.62 mm², AWG 17 to 13, brass, 5-160491-1

Order No.: 05F4909
EAN: 4099889618235
MPN:
5-160491-1
5-0160491-1
Series: FASTON

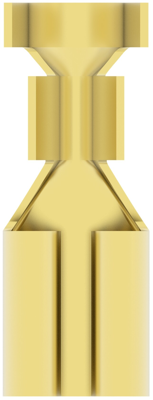

5-160491-1 AMP Receptacles Image 1

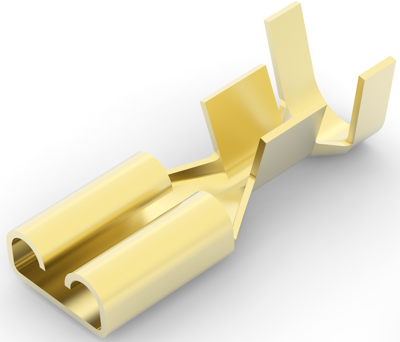

5-160491-1 AMP Receptacles Image 2

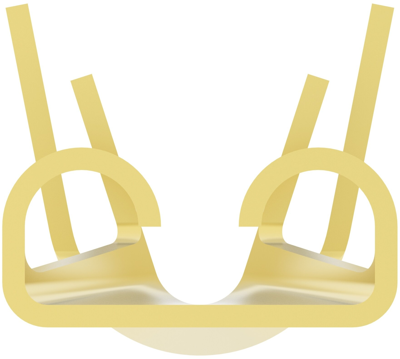

5-160491-1 AMP Receptacles Image 3

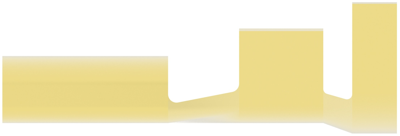

5-160491-1 AMP Receptacles Image 4

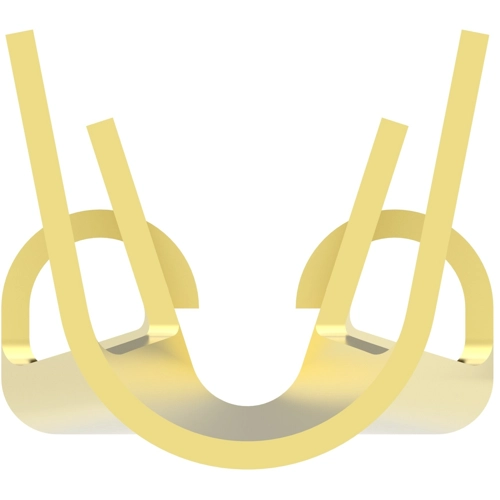

5-160491-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2071 € *
Available: 762 pcs.
Available in 5 Days: 44,628 pcs. - if ordered today
Total Price:
2.07 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2071 €
50 pcs.
0.1916 €
100 pcs.
0.1785 €
250 pcs.
0.1618 €
*incl. VAT plus shipping costs
Subject to prior sale

Receptacle, 5-160491-1, AMP

Receptacle without insulation, made of brass.

Mating width 4.8 mm, type - 0160.

Mating thickness: 0.8 mm. Dimensions: E 6.3, L 15 mm.

Technical attributes (type, for conductor cross-section, contact finish): 5-0160491-1, 1.0 to 2.5 mm², bright.

Technical specifications
Filter Property Value
Connection crimp connection
Suitable for 4.75 x 0.81 mm
AWG cross-section AWG 17 to 13
Length 16 mm
Material brass
Version flat plug sleeve
Isolated No
Cable cross-section 1.03 to 2.62 mm²
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
