5-160433-6 | AMP

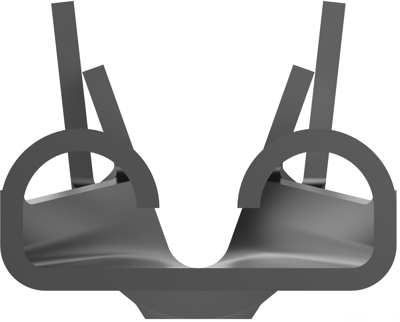

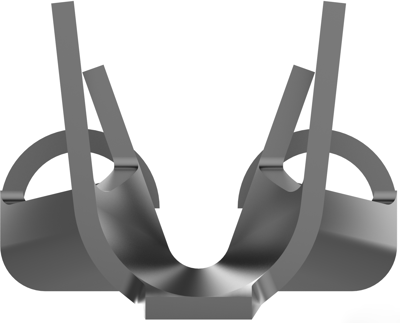

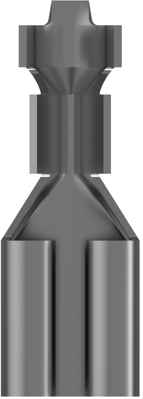

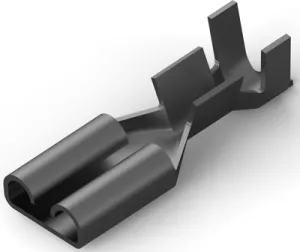

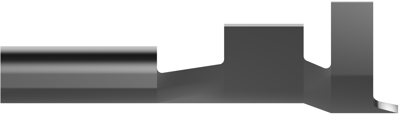

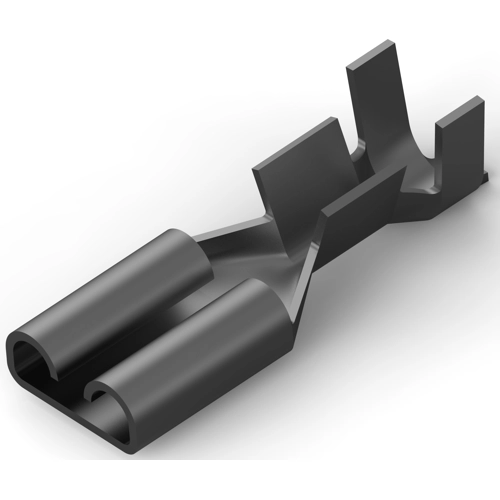

Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.51 to 1.65 mm², AWG 20 to 15, brass, tin-plated, 5-160433-6
Unit Price (€ / pc.)
0.0809 € *
Available in 5 Days: 8,000 pcs. - if ordered today
Total Price:
0.81 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0809 €
50 pcs.
0.0750 €
100 pcs.
0.0702 €
250 pcs.
0.0631 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle, 5-160433-6, AMP
Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 20 – 15 AWG, Wire Size: 0.51 – 1.65 mm², Mating Tab Width: 4.75 mm, Mating Tab Thickness: 0.51 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 8000, Packaging Method: Strip/Reel
Technical Data
- AWG conductor cross-section: AWG 20 to 15
- Material: Brass, tin-plated
- Length: 15 mm
- Isolated: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| AWG cross-section | AWG 20 to 15 | |
| Suitable for | 4.75 x 0.51 mm | |
| Material | brass, tin-plated | |
| Version | flat plug sleeve | |
| Cable cross-section | 0.51 to 1.65 mm² | |
| Isolated | No | |
| Length | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 8,000 pieces |
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
