5-160432-4 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.51 to 1.65 mm², AWG 20 to 15, brass, tin-plated, 5-160432-4

Order No.: 34P8336
EAN: 4099889623420
MPN:
5-160432-4
Series: FASTON

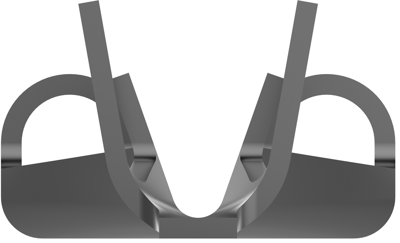

5-160432-4 AMP Receptacles Image 1

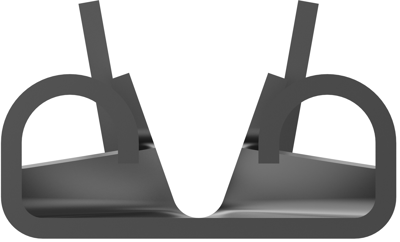

5-160432-4 AMP Receptacles Image 2

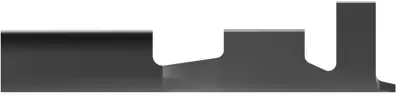

5-160432-4 AMP Receptacles Image 3

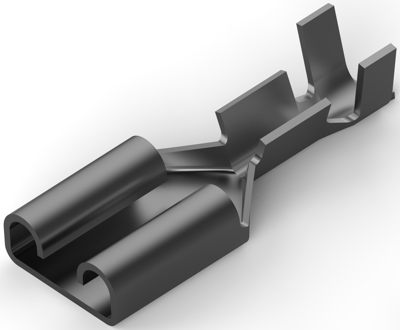

5-160432-4 AMP Receptacles Image 4
5-160432-4 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.0940 € *
Available in 5 Days: 42,000 pcs. - if ordered today
Total Price:
9.40 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0940 €
250 pcs.
0.0869 €
500 pcs.
0.0809 €
1000 pcs.
0.0726 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick disconnect, 5-160432-4, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 20 – 15 AWG, Wire Size: 0.51 – 1.65 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 7000, Quick Disconnect Packaging Method: Strip/Reel, Line: Premier

Technical specifications
Filter Property Value
Suitable for 6.35 x 0.81 mm
Material brass, tin-plated
AWG cross-section AWG 20 to 15
Version flat plug sleeve
Isolated No
Cable cross-section 0.51 to 1.65 mm²
Length 19 mm
Nominal size according to DIN DIN 46247
Connection crimp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Original Packaging Reel with 7,000 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
