5-160432-3 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.51 to 1.65 mm², AWG 20 to 15, brass, 5-160432-3

Order No.: 34P8354
EAN: 4099889623529
MPN:
5-160432-3
Series: FASTON

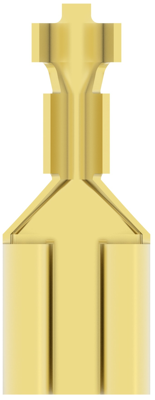

5-160432-3 AMP Receptacles Image 1

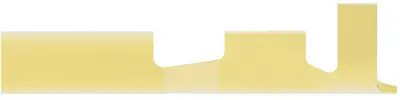

5-160432-3 AMP Receptacles Image 2

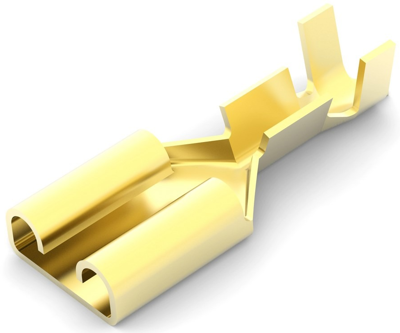

5-160432-3 AMP Receptacles Image 3

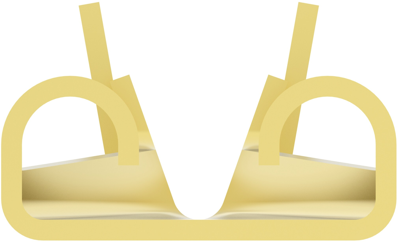

5-160432-3 AMP Receptacles Image 4

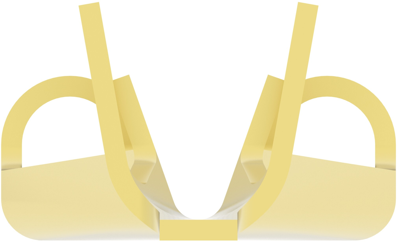

5-160432-3 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.0666 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
466.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
7000 pcs.
0.0666 €

Quick disconnect, 5-160432-3, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 20 – 15 AWG, Wire Size: 0.51 – 1.65 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 12000, Quick Disconnect Packaging Method: Strip/Reel, Line: Premier

Technical specifications
Filter Property Value
Suitable for 6.35 x 0.81 mm
Cable cross-section 0.51 to 1.65 mm²
AWG cross-section AWG 20 to 15
Connection crimp connection
Length 19 mm
Material brass
Version flat plug sleeve
Isolated No
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
