5-160431-2 | AMP

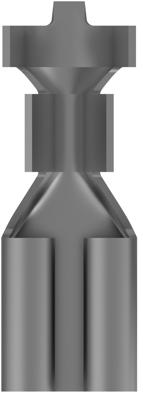

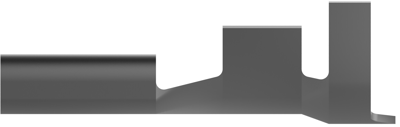

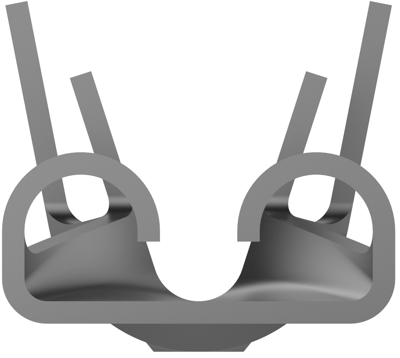

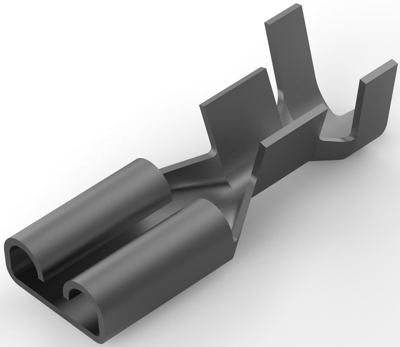

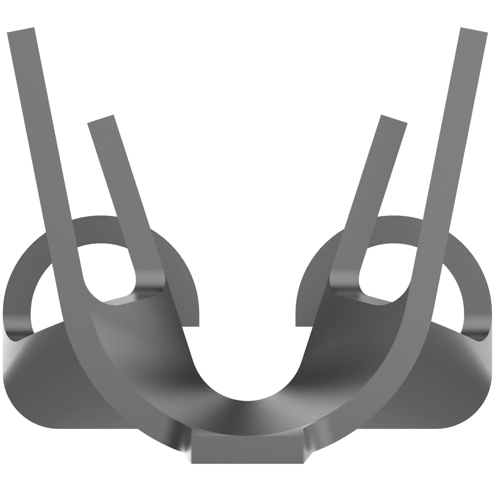

Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 1.03 to 2.62 mm², AWG 17 to 13, brass, tin-plated, 5-160431-2
Unit Price (€ / pc.)
0.0845 € *
Available in 5 Days: 948,000 pcs. - if ordered today
Quick disconnect, 5-160431-2, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 17 – 13 AWG, Wire Size: 1.03 – 2.62 mm², Wire Size: 2048 – 5178 CMA, Quick Disconnect Mating Tab Width: 4.75 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 12000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Connection | crimp connection | |
| Suitable for | 4.75 x 0.51 mm | |
| AWG cross-section | AWG 17 to 13 | |
| Material | brass, tin-plated | |
| Version | flat plug sleeve | |
| Length | 15 mm | |
| Cable cross-section | 1.03 to 2.62 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
