42844-1 | AMP

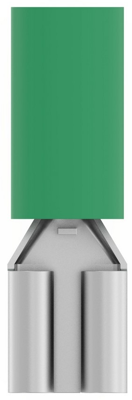

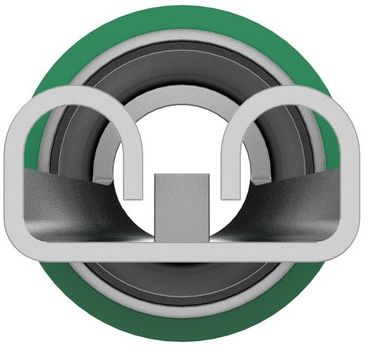

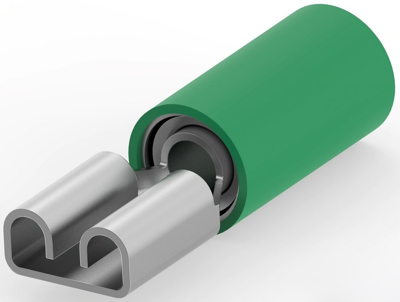

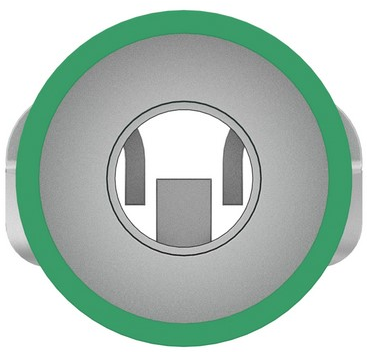

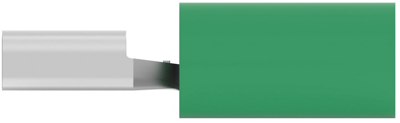

Insulated flat plug sleeve, 6.35 x 0.81 mm, 2.0 to 3.0 mm², AWG 14 to 12, brass, tin-plated, green, 42844-1
Unit Price (€ / pc.)
0.9877 € *
Standard delivery time from the manufacturer is: 40 Weeks
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.9163 €
25 pcs.
0.8568 €
50 pcs.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat receptacle, 42844-1, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.46 mm, Wire Size: 14 – 12 AWG, Wire Size: 2 – 3 mm², Wire Size: 4107 – 6530 CMA, Mating Tab Width: 6.35 mm, Operating Temperature Range: 105 °C, RU (UL Component Program): No, Packaging Quantity: 500, Packaging Method: Loose Piece, Barrel Color: Green
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 14 to 12 | |
| Length | 25.7 mm | |
| Insulation colour | green | |
| Connection | crimp connection | |
| Suitable for | 6.35 x 0.81 mm | |
| Cable cross-section | 2.0 to 3.0 mm² | |
| Material | brass, tin-plated | |
| Version | flat plug sleeve | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
