42511-1 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 3.31 mm², AWG 18 to 12, brass, 42511-1

Order No.: 34P8609
EAN: 4099889624854
MPN:
42511-1
Series: FASTON

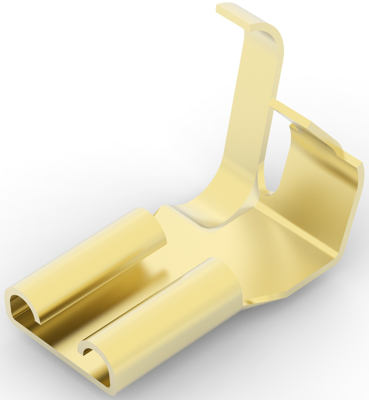

42511-1 AMP Receptacles Image 1

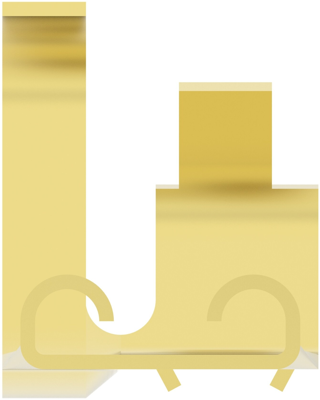

42511-1 AMP Receptacles Image 2

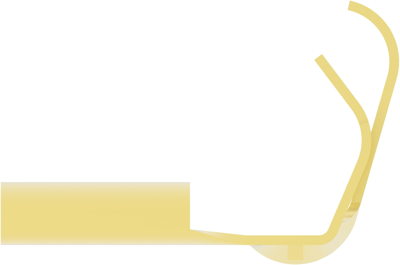

42511-1 AMP Receptacles Image 3

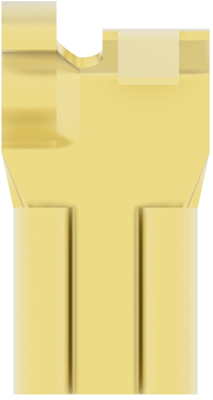

42511-1 AMP Receptacles Image 4

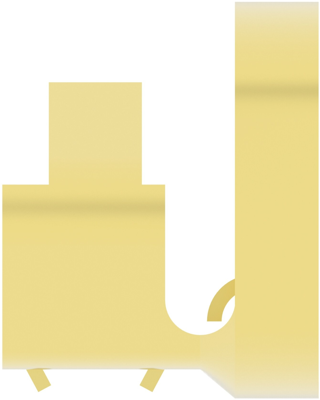

42511-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2856 € *
Available in 5 Days: 64,000 pcs. - if ordered today
Total Price:
1.43 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2856 €
100 pcs.
0.2511 €
250 pcs.
0.2213 €
500 pcs.
0.1809 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick disconnect, 42511-1, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: Tab-Lok, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 12 AWG, Wire Size: 0.82 – 3.31 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 4000, Quick Disconnect Packaging Method: Strip/Reel, Line: Budget

Technical specifications
Isolated No
AWG cross-section AWG 18 to 12
Length 17.02 mm
Cable cross-section 0.82 to 3.31 mm²
Version flat plug sleeve
Material brass
Connection crimp connection
Suitable for 6.35 x 0.81 mm
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
