42233-7 | AMP

Uninsulated flat plug sleeve, 5.21 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, phosphor bronze, tin-plated, 42233-7

Order No.: 60F149
MPN:
42233-7
Series: FASTON 205

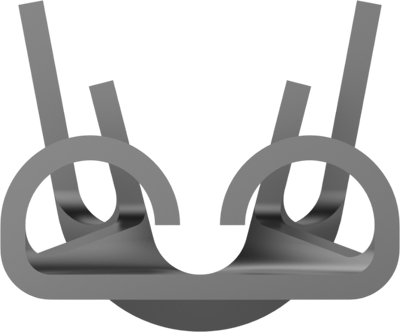

42233-7 AMP Receptacles Image 1

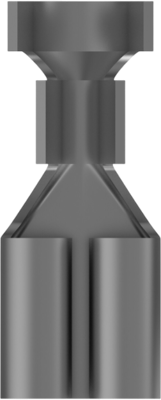

42233-7 AMP Receptacles Image 2

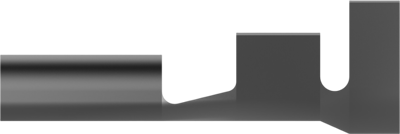

42233-7 AMP Receptacles Image 3

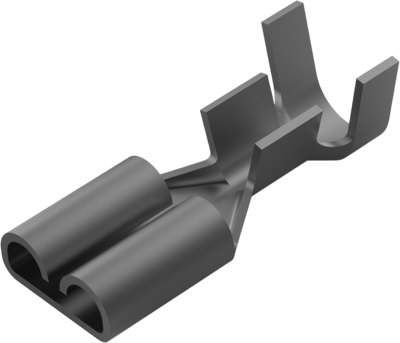

42233-7 AMP Receptacles Image 4

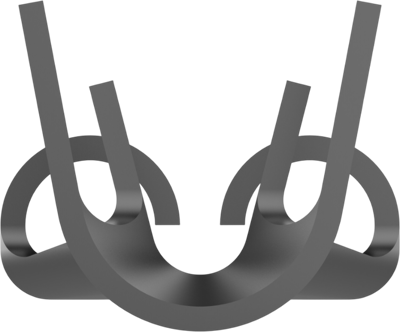

42233-7 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1285 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1285 €
50 pcs.
0.1190 €
100 pcs.
0.1107 €
250 pcs.
0.1000 €
*incl. VAT plus shipping costs
Subject to prior sale

Flat plug sleeve, 42233-7, AMP

Quick Disconnect Receptacle, 18-14 AWG, 0.82-2.08 mm² Wire, 5.21 mm Tab Width, Straight, Phosphor Bronze, Tin Plating, FASTON 205.

Technical specifications
Filter Property Value
Connection crimp connection
Material phosphor bronze, tin-plated
Suitable for 5.21 x 0.81 mm
Version flat plug sleeve
Isolated No
AWG cross-section AWG 18 to 14
Length 15.62 mm
Cable cross-section 0.82 to 2.08 mm²
Logistics
Property Value
Country of origin US
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
