42233-2 | AMP

Uninsulated flat plug sleeve, 5.21 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, Brass, tin-plated, 42233-2

Order No.:  34P8325
Series:  FASTON
EAN: 4099889623345

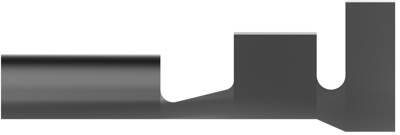

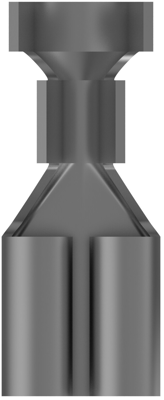

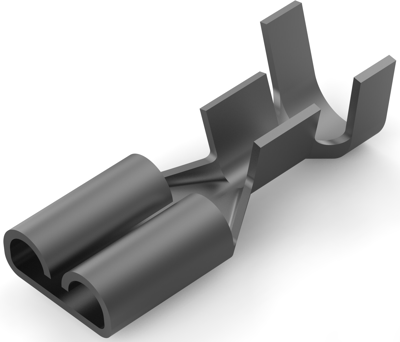

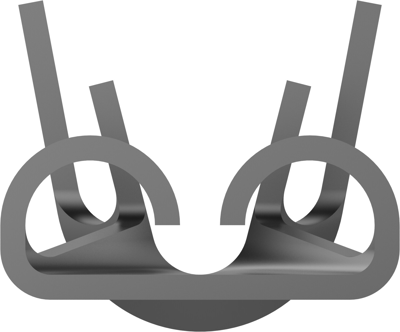

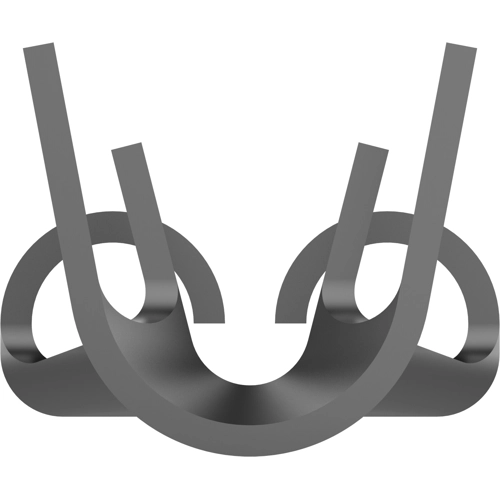

default L
front L
side L
back L
top L
default S
front S
side S
back S
top S
Images may differ
Unit Price (€ / pc.)
0.0583 € *
Available: 0 pcs.
Available in 5 Days: 32,000 pcs.
Leadtime: 41 Weeks **
Add to Cart
Total Price:
0.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
16000 pcs.
0.0583 €

Quick disconnect, 42233-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Quick Disconnect Mating Tab Width: 5.21 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 16000, Quick Disconnect Packaging Method: Strip/Reel, Line: Premier

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 18 to 14
Suitable for 5.21 x 0.81 mm
Isolated No
Length 15.62 mm
Cable cross-section 0.82 to 2.08 mm²
Material Brass, tin-plated
Show similar products (0)
Country of origin US
Customs tariff number 85366990
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
