42098-1 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, 42098-1

Order No.: 34P7847
EAN: 4099889620511
MPN:
42098-1
Series: FASTIN-FASTON

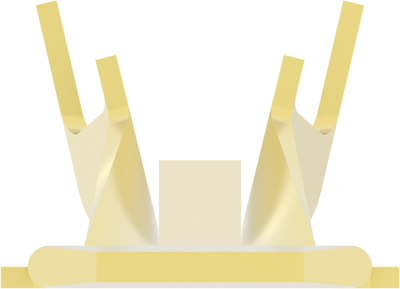

42098-1 AMP Receptacles Image 1

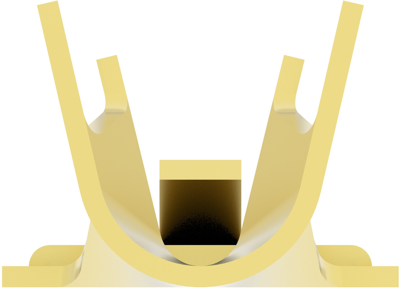

42098-1 AMP Receptacles Image 2

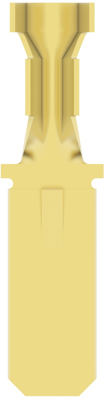

42098-1 AMP Receptacles Image 3

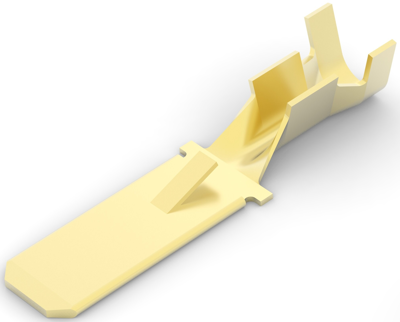

42098-1 AMP Receptacles Image 4
42098-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1464 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
14.64 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1464 €
250 pcs.
0.1345 €
500 pcs.
0.1249 €
1000 pcs.
0.1131 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick disconnect, 42098-1, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Tab, Terminal & Splice Type: Tab, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.4 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 3500, Quick Disconnect Packaging Method: Strip/Reel, Comment: Without Locking Hole

Technical specifications
Filter Property Value
AWG cross-section AWG 18 to 14
Isolated No
Version flat plug sleeve
Material brass
Connection crimp connection
Cable cross-section 0.82 to 2.08 mm²
Suitable for 6.35 x 0.81 mm
Length 30.38 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Original Packaging Reel with 3,500 pieces
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
