41969-2 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, tin-plated, 41969-2

Order No.: 05F4911
EAN: 4099889618259
MPN:
41969-2
0-0041969-2
Series: FASTON

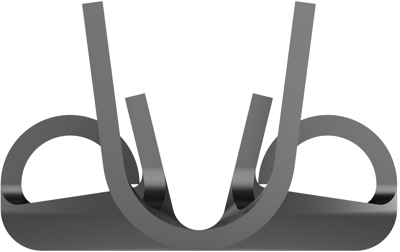

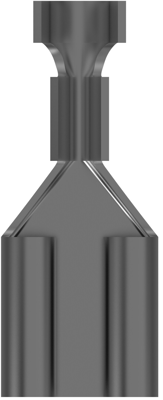

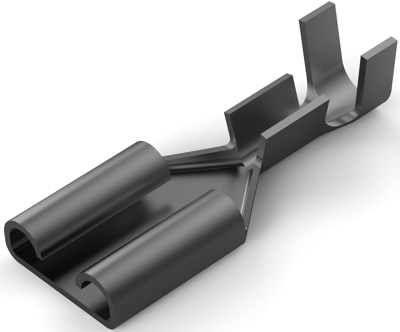

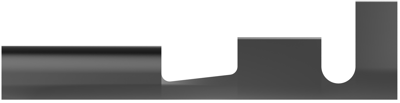

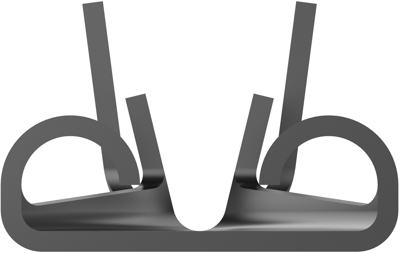

41969-2 AMP Receptacles Image 1
41969-2 AMP Receptacles Image 2
41969-2 AMP Receptacles Image 3
41969-2 AMP Receptacles Image 4
41969-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.5117 € *
Available: 4,598 pcs.
Available in 5 Days: 497,474 pcs. - if ordered today
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
10 pcs.
0.4760 €
50 pcs.
0.4403 €
100 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale

Receptacle, 41969-2, AMP

Receptacle without insulation, made of brass.

Mating width 6.3 mm, type - 0160../ - 0041.

Mating thickness: 0.8 mm. Dimensions: E 7.7, L 19.1 mm.

Technical attributes (type, for conductor cross-section, contact finish): 0-0041969-2, 0.3 to 0.8 mm², tinned.

Technical specifications
Filter Property Value
Isolated No
Connection crimp connection
Suitable for 6.35 x 0.81 mm
AWG cross-section AWG 22 to 18
Material brass, tin-plated
Version flat plug sleeve
Length 20.44 mm
Cable cross-section 0.32 to 0.82 mm²
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
