41898 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 3.31 mm², AWG 18 to 12, brass, tin-plated, 41898
Unit Price (€ / pc.)
0.3213 € *
Available in 5 Days: 5,400 pcs. - if ordered today
Total Price:
0.32 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3213 €
10 pcs.
0.2951 €
25 pcs.
0.2761 €
50 pcs.
0.2511 €
*incl. VAT plus shipping costs
Subject to prior sale

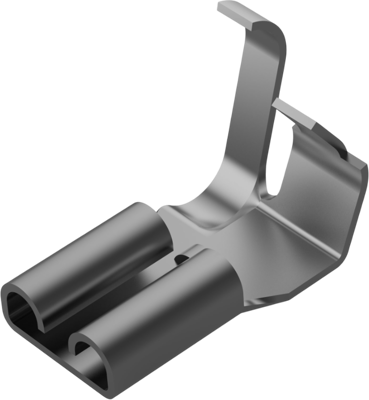

Flat plug sleeve, 41898, AMP
Quick Disconnect Receptacle, 18-12 AWG, 0.82-3.31 mm² Wire, 6.35 mm Tab Width, Flag, Brass, Tin Plating, FASTON 250.
Technical specifications
Filter | Property | Value |
---|---|---|
Connection | crimp connection | |
Material | brass, tin-plated | |
Suitable for | 6.35 x 0.81 mm | |
Version | flat plug sleeve | |
Isolated | No | |
AWG cross-section | AWG 18 to 12 | |
Cable cross-section | 0.82 to 3.31 mm² |
Download
Logistics
Property | Value |
---|---|
Country of origin | US |
Customs tariff number | 85369010 |
Compliance
Property | Value |
---|---|
SVHC free | No |
Date of RoHS guidelines | 3/31/15 |
RoHS conform | Yes |
