41772-1 | AMP

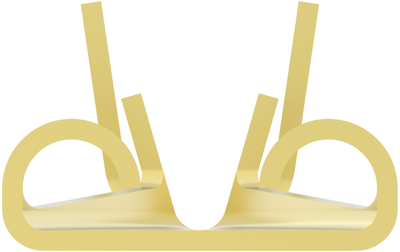

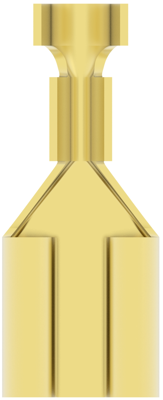

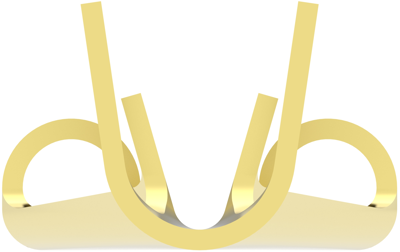

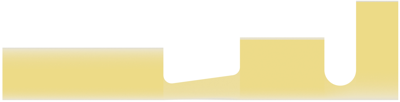

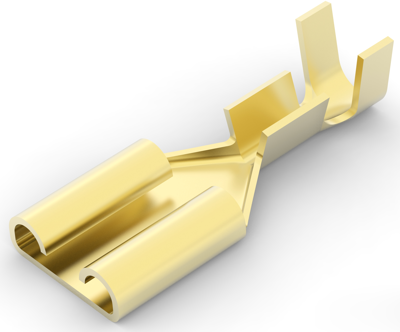

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, tin-plated, 41772-1
Unit Price (€ / pc.)
0.0702 € *
Available in 5 Days: 14,000 pcs. - if ordered today
Receptacle, 41772-1, AMP
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 – .82 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 14000, Packaging Method: Strip/Reel, Comment: Versions according to DIN 46247, Part 3
Technical Data
- AWG conductor cross-section: AWG 22 to 18
- Material: Brass, tin-plated
- Length: 19,05 mm
- Isolated: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Version | flat plug sleeve | |
| Suitable for | 6.35 x 0.81 mm | |
| AWG cross-section | AWG 22 to 18 | |
| Material | brass, tin-plated | |
| Connection | crimp connection | |
| Cable cross-section | 0.32 to 0.82 mm² | |
| Length | 19.05 mm | |
| Nominal size according to DIN | DIN 46247 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
