41202 | AMP

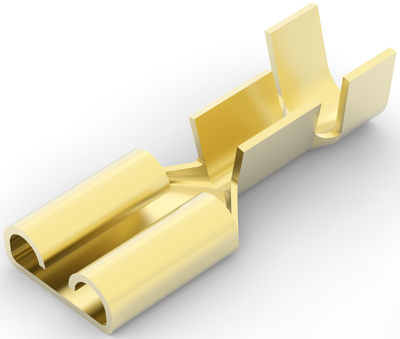

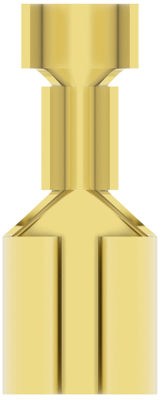

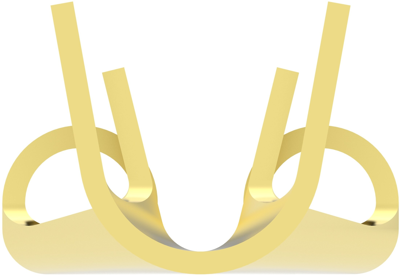

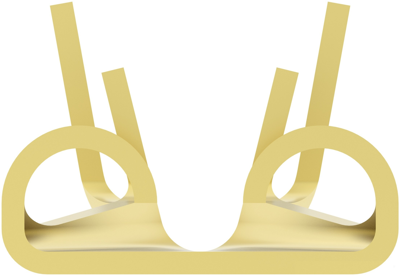

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, 41202
Unit Price (€ / pc.)
0.0666 € *
Standard delivery time from the manufacturer is: 20 Weeks
Flat receptacle, 41202, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.43 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 11000, Packaging Method: Strip/Reel, Line: Premier
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.82 to 2.08 mm² | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 19.18 mm | |
| AWG cross-section | AWG 18 to 14 | |
| Version | flat plug sleeve | |
| Material | brass | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
