4-160256-2 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.0 to 2.5 mm², AWG 17 to 14, steel, nickel-plated, 4-160256-2

Order No.: 34P8329
EAN: 4099889623376
MPN:
4-160256-2
Series: FASTON

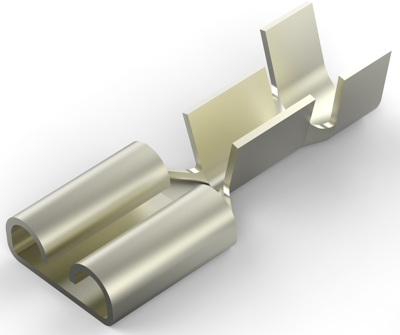

4-160256-2 AMP Receptacles Image 1

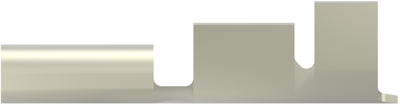

4-160256-2 AMP Receptacles Image 2

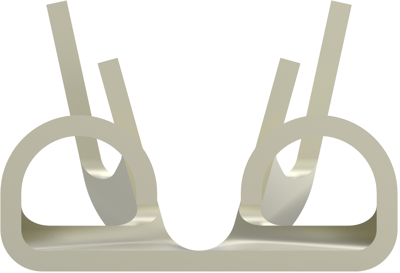

4-160256-2 AMP Receptacles Image 3

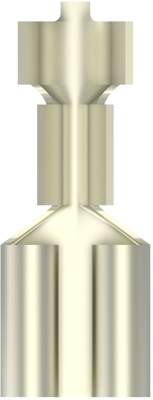

4-160256-2 AMP Receptacles Image 4

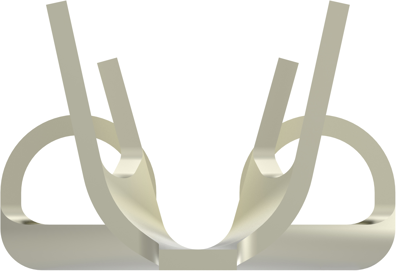

4-160256-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1214 € *
Available in 5 Days: 85,000 pcs. - if ordered today
Total Price:
12.14 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1214 €
250 pcs.
0.1119 €
500 pcs.
0.1047 €
1000 pcs.
0.0940 €
*incl. VAT plus shipping costs
Subject to prior sale

Receptacle, 4-160256-2, AMP

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Pre-Nickel, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Steel, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 17 – 14 AWG, Wire Size: 1 – 2.5 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 250 °C, UL Rating: Listed, Packaging Quantity: 5000, Packaging Method: Strip/Reel, Comment: Versions according to DIN 46247, Part 3

Technical Data

  • AWG conductor cross-section: AWG 17 to 14
  • Material: Steel, nickel-plated
  • Length: 19 mm
  • Isolated: No
Technical specifications
Filter Property Value
Suitable for 6.35 x 0.81 mm
Material steel, nickel-plated
AWG cross-section AWG 17 to 14
Version flat plug sleeve
Isolated No
Cable cross-section 1.0 to 2.5 mm²
Length 19 mm
Nominal size according to DIN DIN 46247
Connection crimp connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Original Packaging Reel with 5,000 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
