344009-1 | AMP

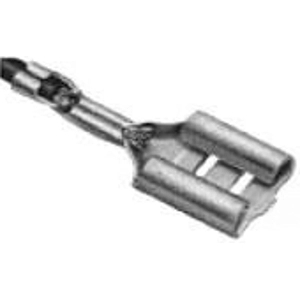

Uninsulated flat plug sleeve, 6.3 x 0.8 mm, 2.0-3.0 mm², AWG 14-12, copper, tin-plated, 344009-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1476 € *
Standard delivery time from the manufacturer is: 20 Weeks
Contacts for motor vehicles, 344009-1, AMP
Receptacle Style: 180°, Sealable: Yes, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 6.3 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 2 - 3 mm², Wire Size Search: 2 mm², 2.5 mm², 3 mm², Wire Size Search: 13 AWG, 14 AWG, Wire Insulation Diameter: 2.6 - 3.4 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 6.3 x 0.8 mm | |
| Material | copper, tin-plated | |
| Isolated | No | |
| Connection | crimp connection | |
| Cable cross-section | 2.0-3.0 mm² | |
| AWG cross-section | AWG 14-12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | NL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
