341002-6 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, tin-plated, 341002-6

Order No.: 35P3556
EAN: 4099889625776
MPN:
341002-6
Series: Positive Lock

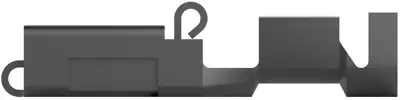

341002-6 AMP Receptacles Image 1

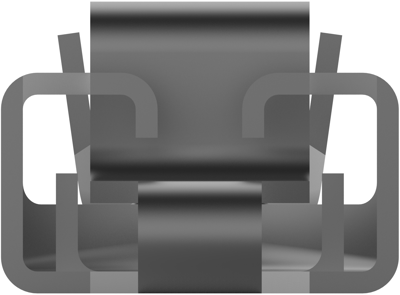

341002-6 AMP Receptacles Image 2

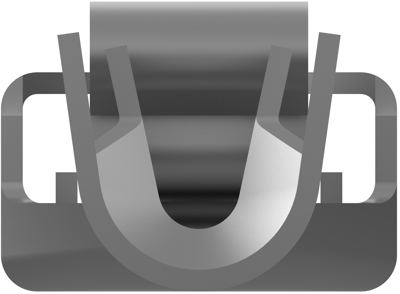

341002-6 AMP Receptacles Image 3

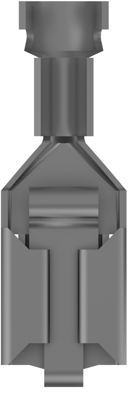

341002-6 AMP Receptacles Image 4

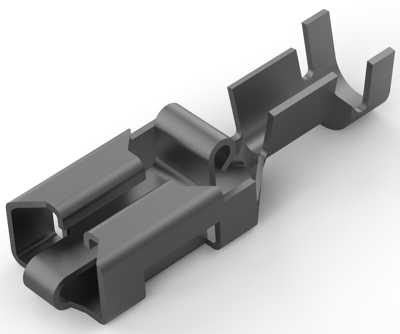

341002-6 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.3094 € *
Available: 610 pcs.
Next delivery: 1,000 pcs. on 2026-08-11
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3094 €
10 pcs.
0.2868 €
25 pcs.
0.2678 €
50 pcs.
0.2440 €
*incl. VAT plus shipping costs
Subject to prior sale

Receptacle, 341002-6, AMP

Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 500, Packaging Method: Loose Piece/Carton, Comment: FLK-Wire: Normal Wire

Technical Data

  • AWG conductor cross-section: AWG 18 to 14
  • Material: Brass, tin-plated
  • Length: 22,25 mm
  • Isolated: No
Technical specifications
Filter Property Value
Suitable for 6.35 x 0.81 mm
Cable cross-section 0.82 to 2.08 mm²
Material brass, tin-plated
Isolated No
Version flat plug sleeve
AWG cross-section AWG 18 to 14
Length 22.25 mm
Connection crimp connection
Logistics
Property Value
Country of origin GB
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
