341001-6 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 2.62 to 4.17 mm², AWG 13 to 11, brass, tin-plated, 341001-6
This item is no longer available.
As an alternative, we recommend the following item:
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 2.1 to 4.17 mm², AWG 14 to 11, brass, tin-plated, 154717-6
Order No.: 35P3591
Manufacturer: AMP
per pc. 0.1833 € *

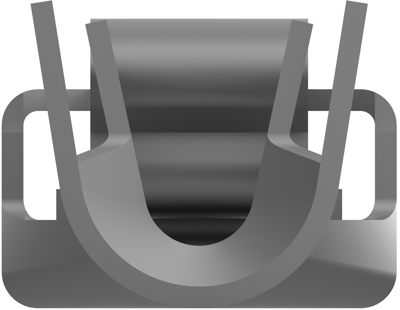

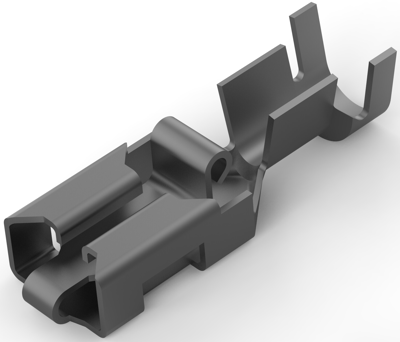

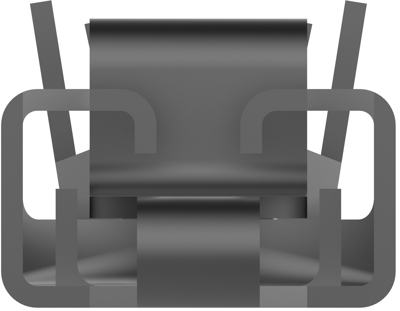

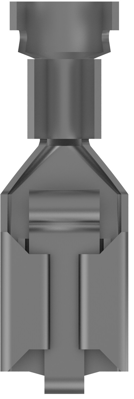

Receptacle, 341001-6, AMP
Receptacle, not insulated, with interlock.
Mating width: 6.3 mm. Mating thickness: 0.8 mm, made of tinned brass. Operating current: max. 25 A.
Technical attributes (type, for conductor cross-section): 0-0341001-6, 2.5 to 4.0 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 6.35 x 0.81 mm | |
| Material | brass, tin-plated | |
| Isolated | No | |
| Connection | crimp connection | |
| Cable cross-section | 2.62 to 4.17 mm² | |
| AWG cross-section | AWG 13 to 11 | |
| Length | 22.76 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
