3-520124-2 | AMP

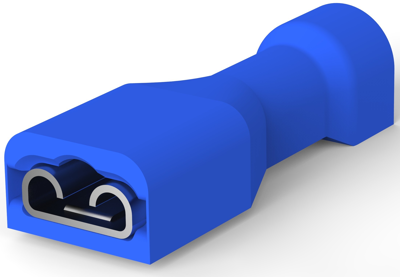

Name: Insulated flat plug sleeve, 4.75 x 0.81 mm, 1.31 to 2.08 mm², AWG 16 to 14, Brass, tin-plated, blue, 3-520124-2
Brand: AMP
SKU: 35P4534
Price: 0.20 EUR
Availability: OutOfStock

Insulated flat plug sleeve, 4.75 x 0.81 mm, 1.31 to 2.08 mm², AWG 16 to 14, Brass, tin-plated, blue, 3-520124-2

Order No.: 35P4534

MPN:

3-520124-2

Series: Ultra-Fast

EAN: 4099889627497

Images may differ

Key Specification:

Version flat plug sleeve

Suitable for 4.75 x 0.81 mm

Material Brass, tin-plated

Isolated Yes

Insulation colour blue

Ordering Information:

not to be sold to private customers

Technical specifications Download Datasheet

Unit Price (€ / pc.)

0.2047 € *

Available: 0 pcs.

Available in 5 Days: 46,200 pcs.

Leadtime: 5 Days **

Add to Cart

Total Price:

0.20 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Add to comparison list Print

Description

Flat receptacle, 3-520124-2, TE Connectivity

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 600 V, Insulation Material: Nylon, Fully Insulated: Yes, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 16 – 14 AWG, Wire Size: 1.31 – 2.08 mm², Mating Tab Width: 4.75 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Flammability Rating: UL 94V-2, Packaging Quantity: 2200, Packaging Method: Strip/Reel, Barrel Color: Blue

Technical specifications

	Connection	crimp connection
	Version	flat plug sleeve
	AWG cross-section	AWG 16 to 14
	Insulation colour	blue
	Suitable for	4.75 x 0.81 mm
	Isolated	Yes
	Length	21.75 mm
	Cable cross-section	1.31 to 2.08 mm²
	Material	Brass, tin-plated
