3-350819-2 | AMP

Insulated flat plug sleeve, 6.35 x 0.81 mm, 1.31 to 2.08 mm², AWG 16 to 14, brass, tin-plated, blue, 3-350819-2

Order No.: 35P4558
EAN: 4099889627718
MPN:
3-350819-2
Series: Ultra-Fast

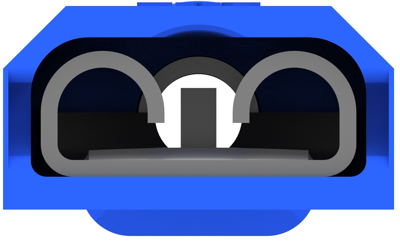

3-350819-2 AMP Receptacles Image 1

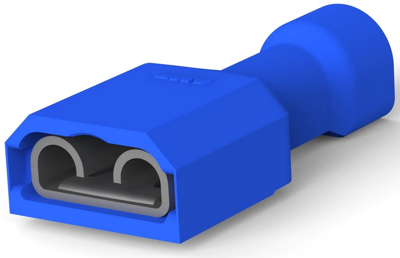

3-350819-2 AMP Receptacles Image 2

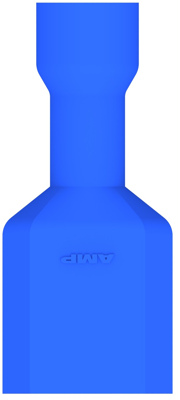

3-350819-2 AMP Receptacles Image 3

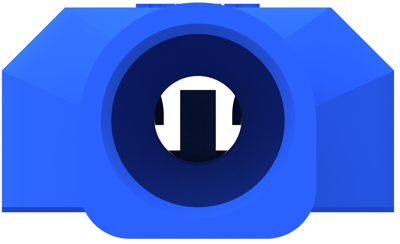

3-350819-2 AMP Receptacles Image 4

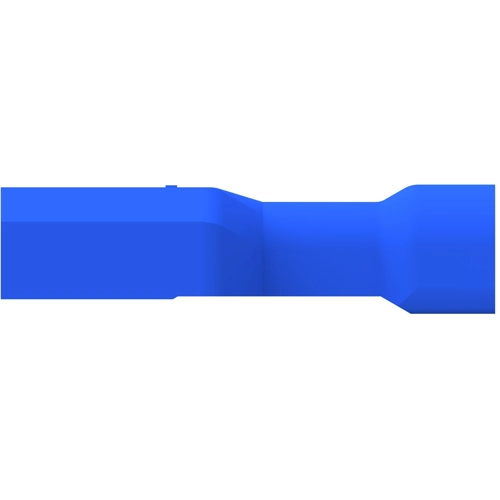

3-350819-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2999 € *
Available in 5 Days: 8,800 pcs. - if ordered today
Total Price:
1.50 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2999 €
10 pcs.
0.2773 €
25 pcs.
0.2582 €
50 pcs.
0.2344 €
*incl. VAT plus shipping costs
Subject to prior sale

Flat receptacle, 3-350819-2, TE Connectivity

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 600 V, Insulation Material: Nylon, Fully Insulated: Yes, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 16 – 14 AWG, Wire Size: 1.31 – 2.08 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Flammability Rating: UL 94V-2, Packaging Quantity: 2200, Packaging Method: Strip/Reel, Barrel Color: Blue

Technical specifications
Filter Property Value
Suitable for 6.35 x 0.81 mm
Material brass, tin-plated
AWG cross-section AWG 16 to 14
Version flat plug sleeve
Isolated Yes
Cable cross-section 1.31 to 2.08 mm²
Insulation colour blue
Length 21.75 mm
Connection crimp connection
Logistics
Property Value
Country of origin JP
Customs tariff number 85366990
Original Packaging Reel with 2,200 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
