282289-1 | AMP
Uninsulated flat plug sleeve, 1.8 x 0.64 mm, 0.75 to 1.5 mm², AWG 18 to 15, brass, tin-plated, 282289-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1321 € *
Available in 12 Days: 18,500 pcs. - if ordered today

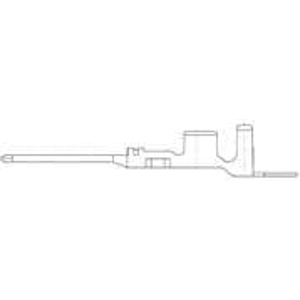

Tab contact, 282289-1, AMP
The 282289-1 is used in extreme conditions. Moisture, dust, corrosive gasses and liquids result in premature aging of electrical contact systems which are not adequately protected. The use of sealed housings can avoid contact damage caused by environmental hazards.
Typical applications include the wiring of sensors in the interior of motor hoods and connections to electrical control systems under extremely unfavourable climatic conditions.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 1.8 x 0.64 mm | |
| Material | brass, tin-plated | |
| Isolated | No | |
| Connection | crimp connection | |
| Cable cross-section | 0.75 to 1.5 mm² | |
| AWG cross-section | AWG 18 to 15 | |
| Length | 24 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
