282180-1 | AMP
Uninsulated flat plug sleeve, 4.75 x 0.81 mm, 0.51 to 1.65 mm², AWG 20 to 15, brass, tin-plated, 282180-1
Unit Price (€ / pc.)
0.2261 € *
Available in 5 Days: 150,000 pcs. - if ordered today
Total Price:
1.13 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2261 €
50 pcs.
0.1916 €
500 pcs.
0.1523 €
5000 pcs.
0.1214 €
10000 pcs.
0.0774 €
*incl. VAT plus shipping costs
Subject to prior sale

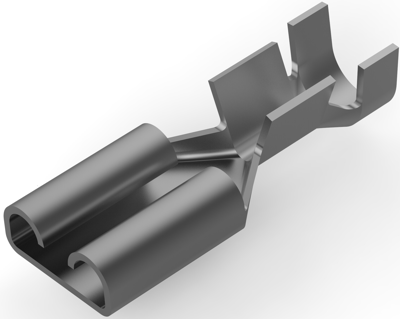

Plug sleeve, 282180-1, AMP
Quick disconnect, Receptacle, 20-15 AWG Wire size, 0.51-1.65 mm² Wire size, Mating tab width 4.75 mm, Straight, Brass.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Connection | crimp connection | |
| Suitable for | 4.75 x 0.81 mm | |
| AWG cross-section | AWG 20 to 15 | |
| Material | brass, tin-plated | |
| Version | flat plug sleeve | |
| Length | 16.6 mm | |
| Cable cross-section | 0.51 to 1.65 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
