280919-4 | AMP

Uninsulated flat plug sleeve, 4.75 x 0.81 mm, 0.51 to 1.65 mm², AWG 20 to 15, phosphor bronze, tin-plated, 280919-4

Order No.: 59F986
MPN:
280919-4
Series: FASTON 187

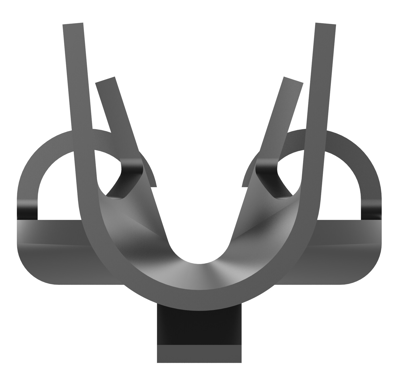

280919-4 AMP Receptacles Image 1

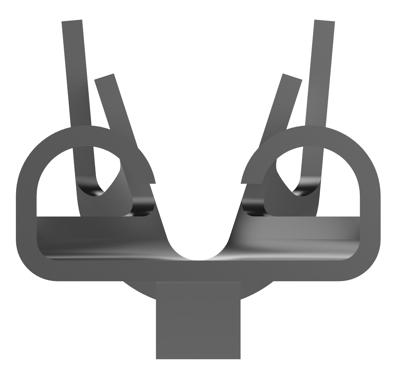

280919-4 AMP Receptacles Image 2

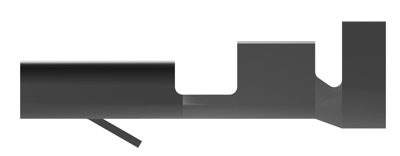

280919-4 AMP Receptacles Image 3

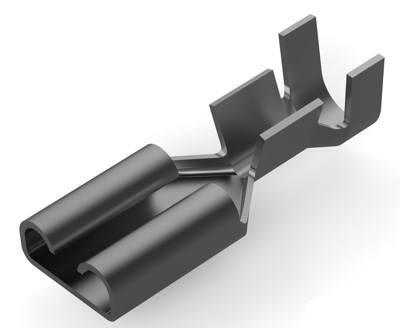

280919-4 AMP Receptacles Image 4
280919-4 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1071 € *
Available in 5 Days: 48,000 pcs. - if ordered today
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1071 €
50 pcs.
0.0988 €
100 pcs.
0.0928 €
250 pcs.
0.0833 €
*incl. VAT plus shipping costs
Subject to prior sale

Uninsulated flat plug sleeve, 280919-4, AMP

Quick Disconnect Receptacle, 20-15 AWG, 0.51-1.65 mm² Wire, 4.75 mm Tab Width, Straight, Phosphor Bronze, FASTIN-FASTON 187.

Technical specifications
Filter Property Value
Connection crimp connection
Material phosphor bronze, tin-plated
Suitable for 4.75 x 0.81 mm
Version flat plug sleeve
Isolated No
AWG cross-section AWG 20 to 15
Length 16 mm
Cable cross-section 0.51 to 1.65 mm²
Logistics
Property Value
Country of origin IT
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
