280755-2 | AMP

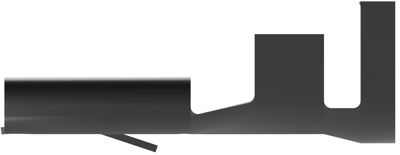

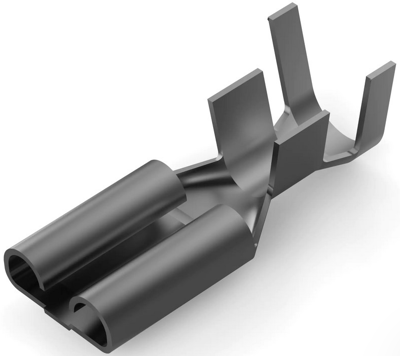

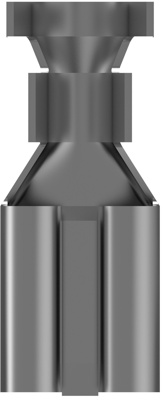

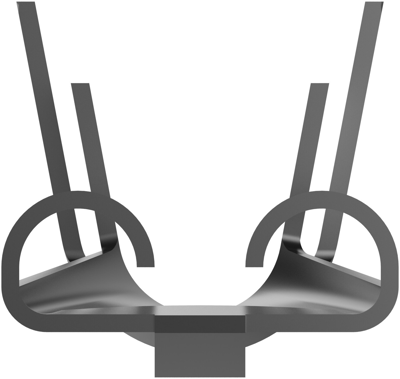

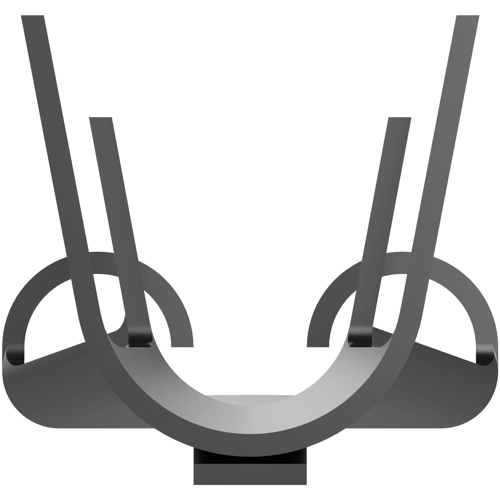

Uninsulated flat plug sleeve, 9.53 x 1.22 mm, 6.0 to 10 mm², AWG 10 to 7, brass, tin-plated, 280755-2
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Leadtime: 24 Weeks **
Flat receptacle, 280755-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Voltage (Max): 250 V, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.51 mm, Wire Size: 10 – 7 AWG, Wire Size: 6 – 10 mm², Mating Tab Width: 9.53 mm, Mating Tab Thickness: 1.22 mm, Operating Temperature Range: -40 – 110 °C, UL Flammability Rating: UL 94V-2, Packaging Quantity: 1000, Packaging Method: Strip/Reel, Comment: According to DIN 46340, Part 4
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 10 to 7 | |
| Suitable for | 9.53 x 1.22 mm | |
| Isolated | No | |
| Length | 29 mm | |
| Cable cross-section | 6.0 to 10 mm² | |
| Material | brass, tin-plated | |
| Nominal size according to DIN | DIN 46340 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
