280223-2 | AMP

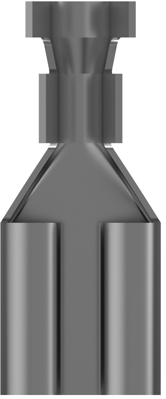

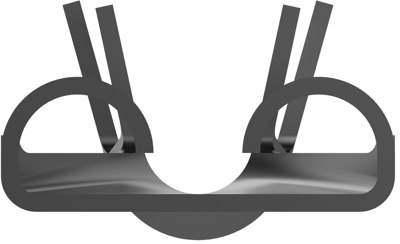

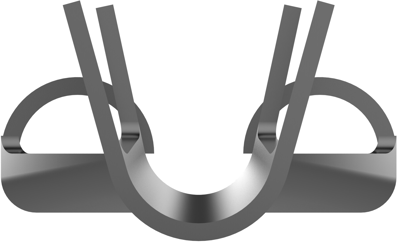

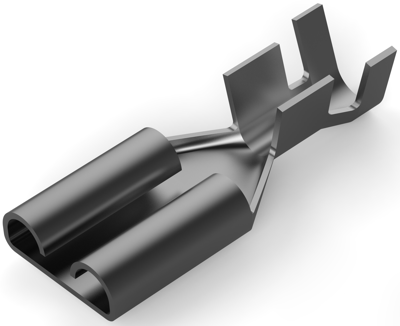

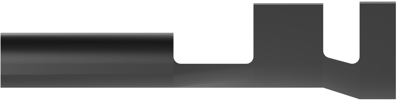

Uninsulated flat plug sleeve, 9.53 x 1.22 mm, 4.0 to 6.63 mm², AWG 11 to 9, brass, tin-plated, 280223-2
Unit Price (€ / pc.)
0.4046 € *
Available in 5 Days: 4,000 pcs. - if ordered today
Total Price:
809.20 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.4046 €
4000 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale
Quick disconnect, 280223-2, AMP
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.51 mm, Wire Size: 11 – 9 AWG, Wire Size: 4 – 6.63 mm², Quick Disconnect Mating Tab Width: 9.53 mm, Quick Disconnect Mating Tab Thickness: 1.22 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 2000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 9.53 x 1.22 mm | |
| Version | flat plug sleeve | |
| Material | brass, tin-plated | |
| Isolated | No | |
| Length | 27.2 mm | |
| AWG cross-section | AWG 11 to 9 | |
| Connection | crimp connection | |
| Cable cross-section | 4.0 to 6.63 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
