2238060-1 | AMP
Plug sleeve, 2238060-1
Order No.: 71P6042
MPN:
2238060-1
EAN: 4099891712983
Images may differ
Unit Price (€ / pc.)
0.0678 € *
Available: 0 pcs.
Available in 5 Days: 140,000 pcs.
Leadtime: 13 Weeks **
Add to Cart
Total Price:
0.07 € *
Quantity
Price per unit*
20000 pcs.
0.0678 €
40000 pcs.
0.0655 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

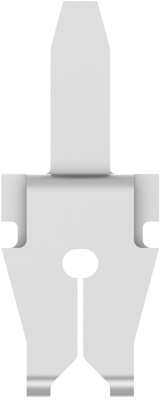

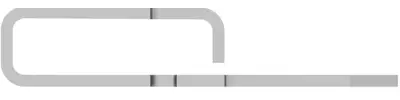

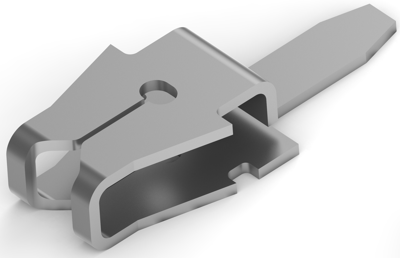

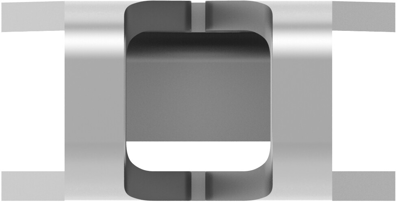

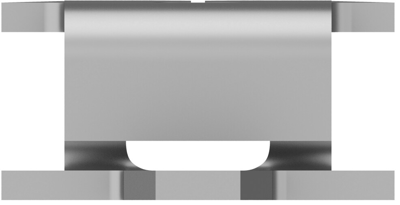

Plug sleeve, 2238060-1, AMP
Magnet wire terminal, Solder post, Size 1, Insulation displacement (IDC), Barbs mating retention type, Tin plating, None, Length 8.43 mm.
Applications
- Motor windings and connections
- Coil connection
- Lighting ballasts
- Power supplies
Technical specifications
| Connection | IDC connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 33 to 31 | |
| Isolated | No | |
| Length | 8.43 mm | |
| Material | Brass, tin plated |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
