2232111-1 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.5 to 4.0 mm², AWG 20 to 12, brass, tin-plated, 2232111-1
Unit Price (€ / pc.)
0.0940 € *
Available in 5 Days: 3,404,000 pcs. - if ordered today
Total Price:
9.40 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0940 €
250 pcs.
0.0869 €
500 pcs.
0.0809 €
1000 pcs.
0.0726 €
*incl. VAT plus shipping costs
Subject to prior sale

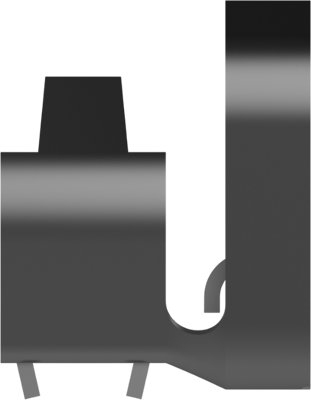

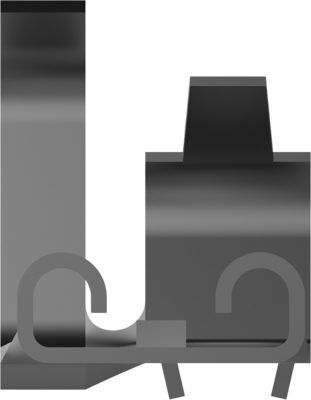

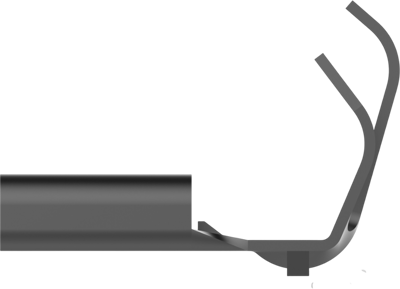

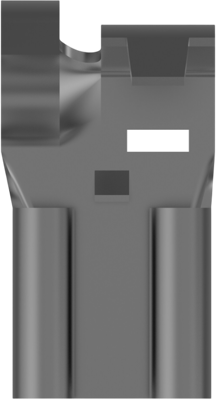

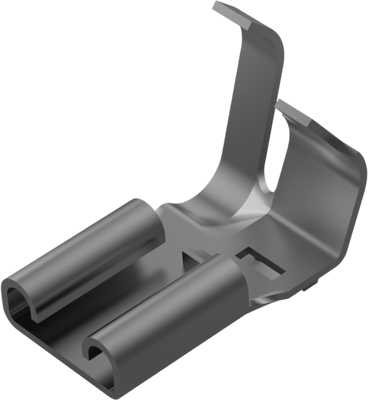

Flat plug sleeve, 2232111-1, AMP
Quick Disconnect Receptacle, 20-12 AWG, 0.5-4 mm² Wire, 6.35 mm Tab Width, Flag, Brass, Tin Plating, Tab-Lok, FASTON 250.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 6.35 x 0.81 mm | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 20 to 12 | |
| Version | flat plug sleeve | |
| Isolated | No | |
| Cable cross-section | 0.5 to 4.0 mm² | |
| Length | 17.02 mm | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
