2-520080-2 | AMP

Insulated flat plug sleeve, 2.8 x 0.41 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, tin-plated, red, 2-520080-2

Order No.: 35P4538
EAN: 4099889627527
MPN:
2-520080-2
Series: Ultra-Fast

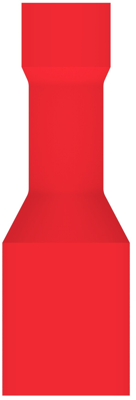

2-520080-2 AMP Receptacles Image 1

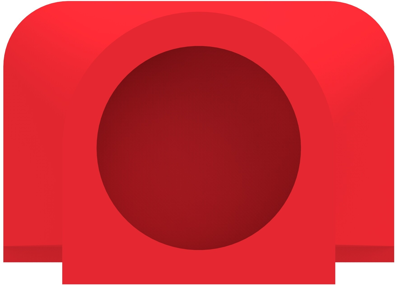

2-520080-2 AMP Receptacles Image 2

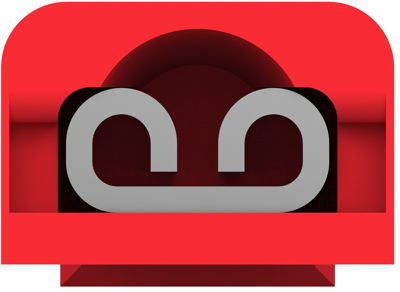

2-520080-2 AMP Receptacles Image 3

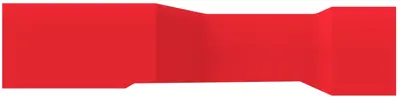

2-520080-2 AMP Receptacles Image 4

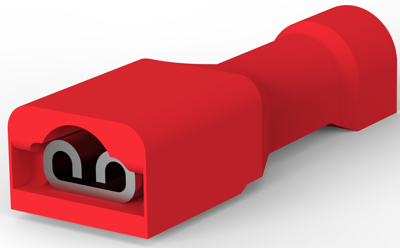

2-520080-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2154 € *
Available in 5 Days: 12,000 pcs. - if ordered today
Total Price:
646.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.2154 €

Flat receptacle, 2-520080-2, TE Connectivity

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 600 V, Insulation Material: Nylon, Fully Insulated: Yes, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 -0.82 mm², Mating Tab Width: 2.8 mm,3.18 mm, Mating Tab Thickness: 0.41 mm, Operating Temperature Range: -40 – 110 °C, UL Flammability Rating: UL 94V-2, Packaging Quantity: 3000, Packaging Method: Strip/Reel, Barrel Color: Red

Technical specifications
Filter Property Value
Insulation colour red
Material brass, tin-plated
Isolated Yes
Length 18.67 mm
Suitable for 2.8 x 0.41 mm
Cable cross-section 0.32 to 0.82 mm²
AWG cross-section AWG 22 to 18
Connection crimp connection
Version flat plug sleeve
Logistics
Property Value
Customs tariff number 85366990
Country of origin CH
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
