2-160256-2 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.0 to 2.5 mm², AWG 17 to 14, brass, tin-plated, 2-160256-2

Order No.: 34P8365
EAN: 4099889623611
MPN:
2-160256-2
Series: FASTON

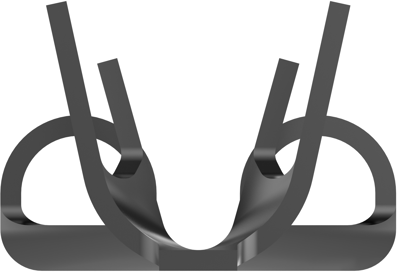

2-160256-2 AMP Receptacles Image 1

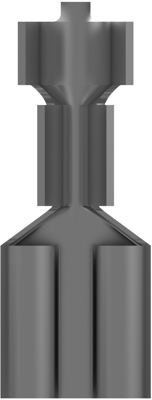

2-160256-2 AMP Receptacles Image 2

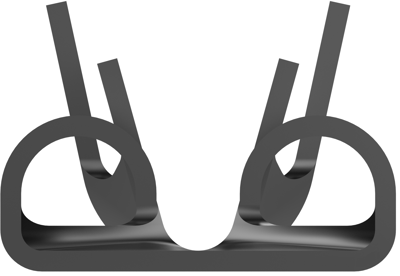

2-160256-2 AMP Receptacles Image 3

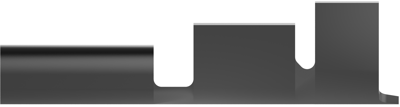

2-160256-2 AMP Receptacles Image 4

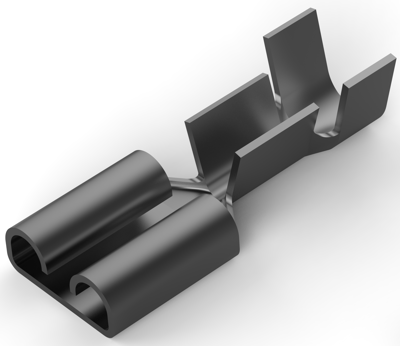

2-160256-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1690 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.84 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1690 €
10 pcs.
0.1488 €
50 pcs.
0.1261 €
100 pcs.
0.1035 €
*incl. VAT plus shipping costs
Subject to prior sale

Receptacle, 2-160256-2, AMP

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 17 – 14 AWG, Wire Size: 1 – 2.5 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, CSA Certified: Yes, Packaging Quantity: 5000, Packaging Method: Strip/Reel, Line: Premier

Technical Data

  • AWG conductor cross-section: AWG 17 to 14
  • Material: Brass, tin-plated
  • Length: 19 mm
  • Isolated: No
Technical specifications
Suitable for 6.35 x 0.81 mm
Length 19 mm
Connection crimp connection
Material brass, tin-plated
Cable cross-section 1.0 to 2.5 mm²
Version flat plug sleeve
Isolated No
AWG cross-section AWG 17 to 14
Logistics
Customs tariff number 85366990
Country of origin CN
Original Packaging Reel with 5,000 pieces
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
