180453-1 | AMP

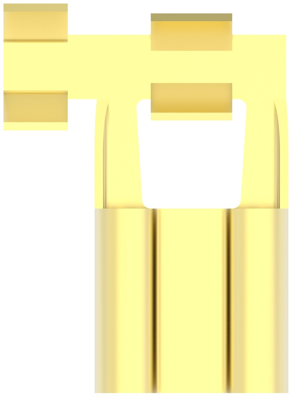

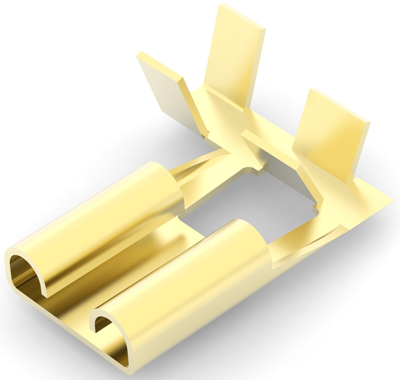

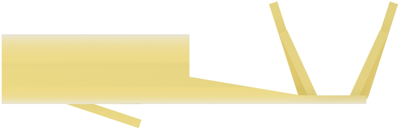

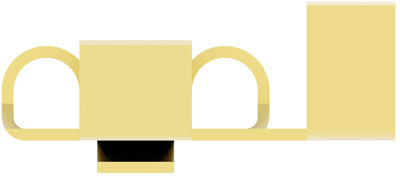

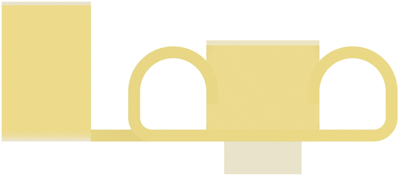

Uninsulated flat plug sleeve, 7.92 x 0.81 mm, 1.03 to 2.62 mm², AWG 17 to 13, brass, 180453-1
Unit Price (€ / pc.)
0.1583 € *
Standard delivery time from the manufacturer is: 28 Weeks
Total Price:
15.83 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1583 €
250 pcs.
0.1464 €
500 pcs.
0.1357 €
1000 pcs.
0.1226 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat receptacle, 180453-1, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 17 – 13 AWG, Wire Size: 1.03 – 2.62 mm², Mating Tab Width: 7.92 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 2000, Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 7.92 x 0.81 mm | |
| Material | brass | |
| AWG cross-section | AWG 17 to 13 | |
| Version | flat plug sleeve | |
| Isolated | No | |
| Cable cross-section | 1.03 to 2.62 mm² | |
| Length | 17.6 mm | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
