180388-5 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.51 to 1.65 mm², AWG 20 to 15, phosphor bronze, tin-plated, 180388-5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1809 € *
Available in 12 Days: 44,000 pcs. - if ordered today
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1809 €
100 pcs.
0.1678 €
500 pcs.
0.1571 €
1000 pcs.
0.1523 €
*incl. VAT plus shipping costs
Subject to prior sale

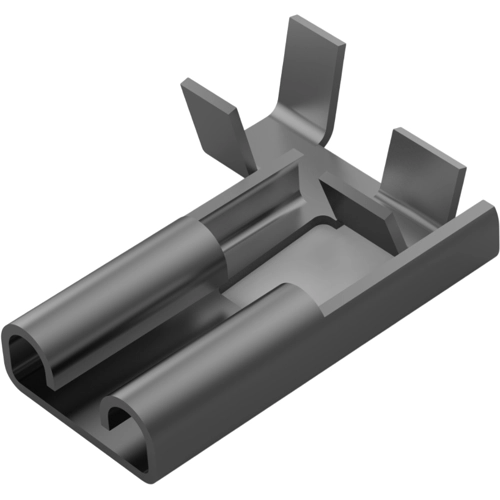

Uninsulated Flat Plug Sleeve, 180388-5, AMP
Quick Disconnect Receptacle, Uninsulated, 20 - 15 AWG, 0.51 - 1.65 mm² Wire, 6.35 mm Tab Width, F-Crimp, Straight, Phosphor Bronze.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 6.35 x 0.81 mm | |
| Material | phosphor bronze, tin-plated | |
| Isolated | No | |
| Connection | crimp connection | |
| Cable cross-section | 0.51 to 1.65 mm² | |
| AWG cross-section | AWG 20 to 15 | |
| Length | 14.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
