180384-2 | AMP

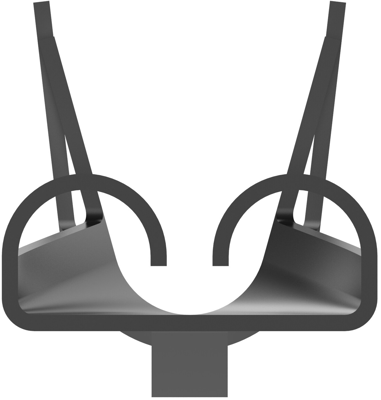

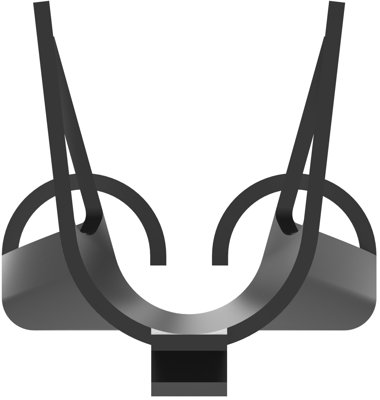

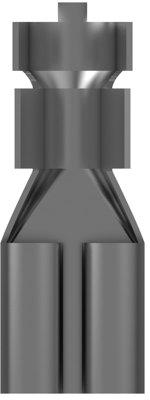

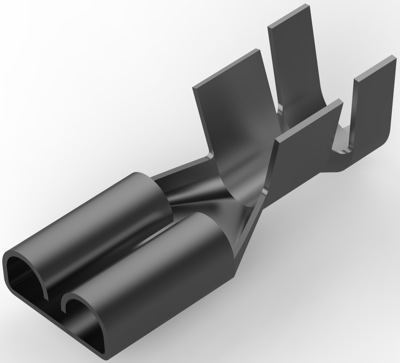

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 4.0 to 5.2 mm², AWG 11 to 10, brass, tin-plated, 180384-2
Unit Price (€ / pc.)
0.2808 € *
Available: 2,021 pcs.
Available in 5 Days: 13,500 pcs. - if ordered today
Total Price:
1.40 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2808 €
10 pcs.
0.2606 €
25 pcs.
0.2416 €
50 pcs.
0.2190 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle, 180384-2, AMP
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Voltage (Max): 250 V, Fully Insulated: No, Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 11 – 10 AWG, Wire Size: 4 – 5.2 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 500, Packaging Method: Loose Piece/Carton
Technical Data
- AWG conductor cross-section: AWG 11 to 10
- Material: Brass, tin-plated
- Length: 20 mm
- Isolated: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 6.35 x 0.81 mm | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 11 to 10 | |
| Version | flat plug sleeve | |
| Isolated | No | |
| Cable cross-section | 4.0 to 5.2 mm² | |
| Length | 20 mm | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
