180367-2 | AMP

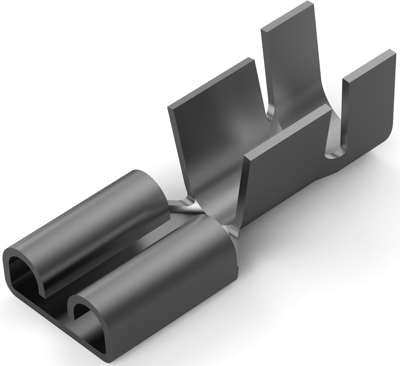

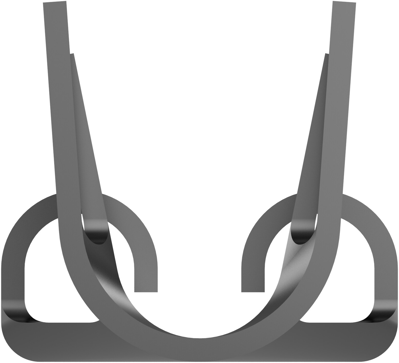

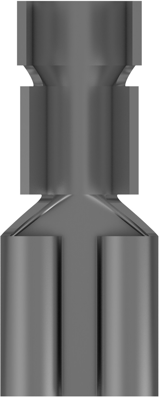

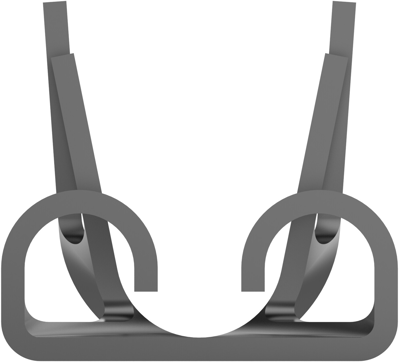

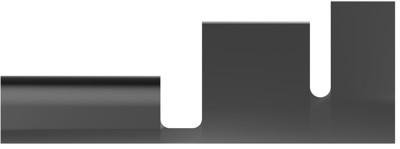

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 4.0 to 6.63 mm², AWG 11 to 9, brass, tin-plated, 180367-2
Unit Price (€ / pc.)
0.1273 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Quick disconnect, 180367-2, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Overall Length: 20.3 mm, Wire Size: 11 – 9 AWG, Wire Size: 4 – 6.63 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 250, Quick Disconnect Packaging Method: Loose Piece/Carton, Line: Premier
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 11 to 9 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 20.3 mm | |
| Cable cross-section | 4.0 to 6.63 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
