180351-8 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 4.0 to 6.63 mm², AWG 11 to 9, brass, tin-plated, 180351-8

Order No.: 34P7818
EAN: 4099889620337
MPN:
180351-8
Series: FASTIN-FASTON

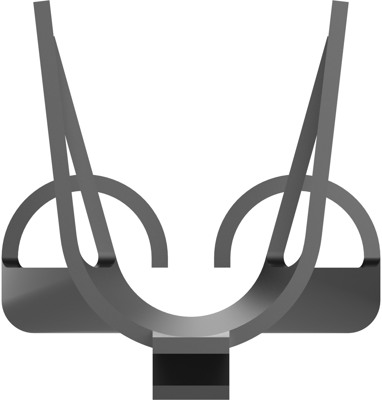

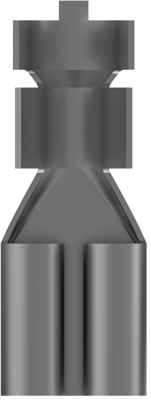

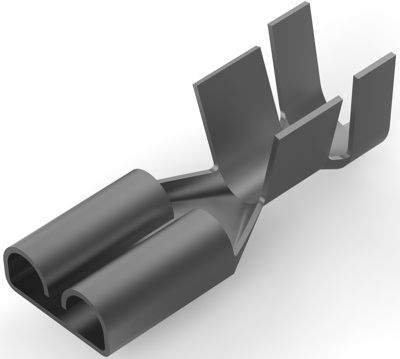

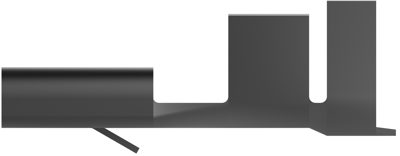

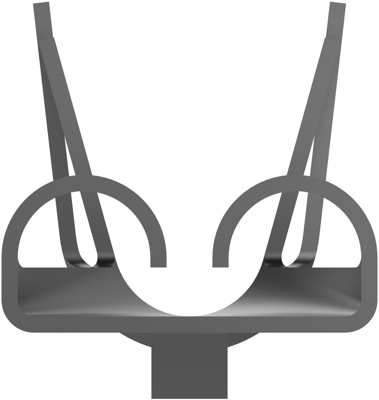

180351-8 AMP Receptacles Image 1
180351-8 AMP Receptacles Image 2
180351-8 AMP Receptacles Image 3
180351-8 AMP Receptacles Image 4
180351-8 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1737 € *
Available in 5 Days: 6,000 pcs. - if ordered today
Total Price:
17.37 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1737 €
250 pcs.
0.1607 €
500 pcs.
0.1488 €
1000 pcs.
0.1345 €
*incl. VAT plus shipping costs
Subject to prior sale

Flat receptacle, 180351-8, TE Connectivity

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Voltage (Max): 250 V, Fully Insulated: No, Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.33 mm, Wire Size: 11 – 9 AWG, Wire Size: 4 – 6.63 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 3000, Packaging Method: Strip/Reel, Comment: Without Dimple

Technical specifications
Filter Property Value
Suitable for 6.35 x 0.81 mm
Material brass, tin-plated
AWG cross-section AWG 11 to 9
Version flat plug sleeve
Isolated No
Cable cross-section 4.0 to 6.63 mm²
Length 19 mm
Connection crimp connection
Logistics
Property Value
Country of origin JP
Customs tariff number 85389091
Original Packaging Reel with 3,000 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
