175024-1 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.65 to 5.26 mm², AWG 15 to 10, brass, tin-plated, 175024-1

Order No.: 35P3457
EAN: 4099889625608
MPN:
175024-1

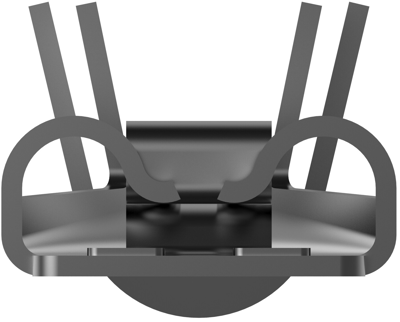

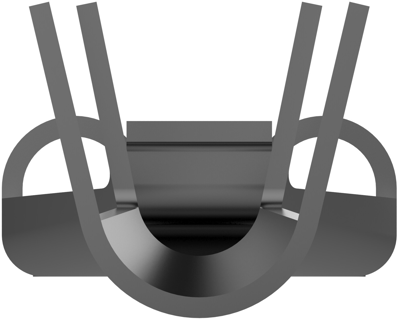

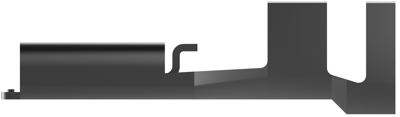

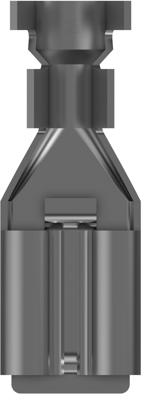

175024-1 AMP Receptacles Image 1
175024-1 AMP Receptacles Image 2
175024-1 AMP Receptacles Image 3
175024-1 AMP Receptacles Image 4
175024-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1416 € *
Available in 5 Days: 24,000 pcs. - if ordered today
Total Price:
566.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.1416 €

Flat receptacle, 175024-1, TE Connectivity

Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Voltage (Max): 250 V, Fully Insulated: No, Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 15 – 10 AWG, Wire Size: 1.65 – 5.26 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 4000, Packaging Method: Strip/Reel

Technical specifications
Filter Property Value
Connection crimp connection
Material brass, tin-plated
Suitable for 6.35 x 0.81 mm
Version flat plug sleeve
Isolated No
AWG cross-section AWG 15 to 10
Length 21.2 mm
Cable cross-section 1.65 to 5.26 mm²
Logistics
Property Value
Country of origin TH
Original Packaging Reel with 4,000 pieces
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
