175020-1 | AMP

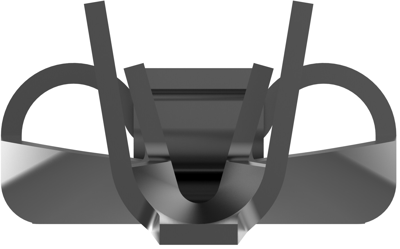

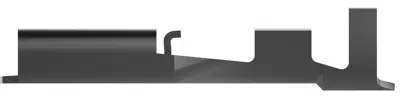

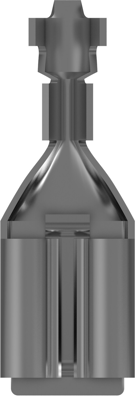

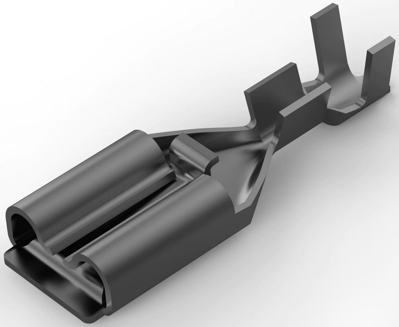

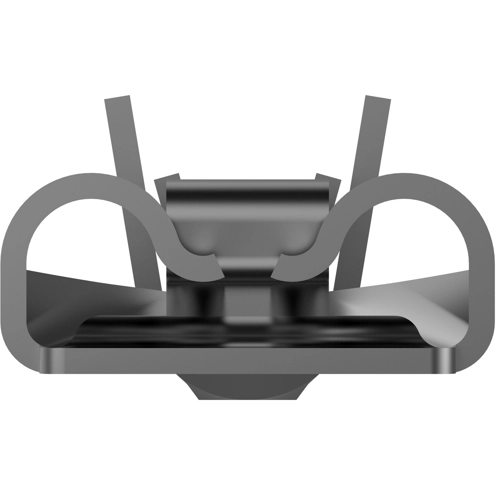

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, tin-plated, 175020-1
Unit Price (€ / pc.)
0.1261 € *
Available in 5 Days: 1,260,000 pcs. - if ordered today
Total Price:
1.26 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1261 €
50 pcs.
0.1166 €
100 pcs.
0.1083 €
250 pcs.
0.0988 €
*incl. VAT plus shipping costs
Subject to prior sale
Quick disconnect, 175020-1, AMP
Terminates To: Wire & Cable, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 250 V, Fully Insulated: Yes, Quick Disconnect Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 – .82 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Fully Insulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 5000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 18 | |
| Length | 21.2 mm | |
| Connection | crimp connection | |
| Suitable for | 6.35 x 0.81 mm | |
| Cable cross-section | 0.32 to 0.82 mm² | |
| Material | brass, tin-plated | |
| Version | flat plug sleeve | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
