174778-2 | AMP

Name: Uninsulated flat plug sleeve, 2.8 x 0.51 mm, 0.51 to 1.31 mm², AWG 20 to 16, Phosphor bronze, tin-plated, 174778-2
Brand: AMP
SKU: 35P3660
Price: 0.09 EUR
Availability: OutOfStock

Uninsulated flat plug sleeve, 2.8 x 0.51 mm, 0.51 to 1.31 mm², AWG 20 to 16, Phosphor bronze, tin-plated, 174778-2

Order No.: 35P3660

MPN:

174778-2

Series: Positive Lock 110

EAN: 4099889626544

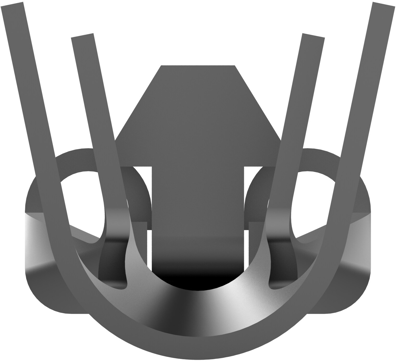

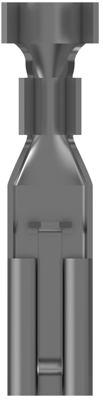

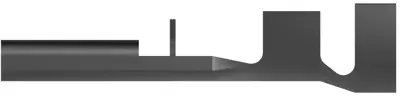

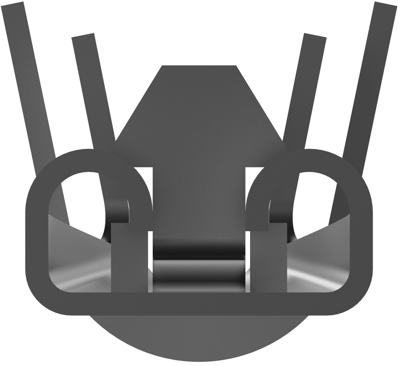

Images may differ

Key Specification:

Version flat plug sleeve

Suitable for 2.8 x 0.51 mm

Material Phosphor bronze, tin-plated

Isolated No

Ordering Information:

not to be sold to private customers

Technical specifications Download Datasheet

Unit Price (€ / pc.)

0.0904 € *

Available: 0 pcs.

Available in 5 Days: 14,029 pcs.

Leadtime: 5 Days **

Add to Cart

Total Price:

0.09 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Add to comparison list Print

Description

Quick disconnect, 174778-2, AMP

Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.25 mm, Wire Size: 20 – 16 AWG, Wire Size: 0.51 – 1.31 mm², Quick Disconnect Mating Tab Width: 2.8 mm, Quick Disconnect Mating Tab Thickness: 0.51 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 1000, Quick Disconnect Packaging Method: Loose Piece/Carton

Technical specifications

	Connection	crimp connection
	Version	flat plug sleeve
	AWG cross-section	AWG 20 to 16
	Suitable for	2.8 x 0.51 mm
	Isolated	No
	Length	17.2 mm
	Cable cross-section	0.51 to 1.31 mm²
	Material	Phosphor bronze, tin-plated
