1742977-1 | AMP

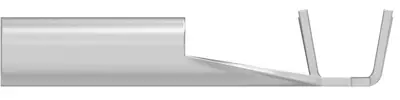

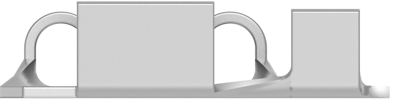

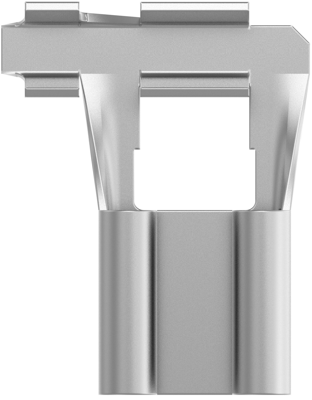

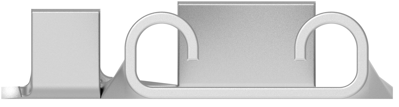

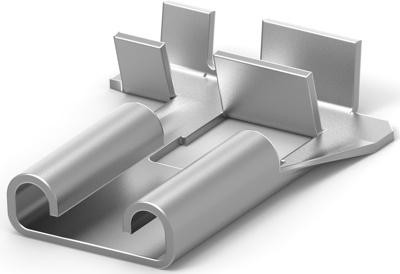

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.03 to 1.65 mm², AWG 17 to 15, brass, tin-plated, 1742977-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1166 € *
Standard delivery time from the manufacturer is: 23 Weeks
Quick disconnect, 1742977-1, AMP
Wire/Cable Type: Magnet Wire, Quick Disconnect Insertion Force: Standard, Insulated: No, Connection Capacity: Single, Voltage (Max): 240 V, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.4 mm, Wire Size: 17 – 15 AWG, Wire Size: 1.03 – 1.65 mm², Wire Size: 1500 – 4220 CMA, Quick Disconnect Mating Tab Width: 8.12 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 105 °C, Packaging Quantity: 15000, Quick Disconnect Packaging Method: Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 6.35 x 0.81 mm | |
| Material | brass, tin-plated | |
| Isolated | No | |
| Connection | crimp connection | |
| Cable cross-section | 1.03 to 1.65 mm² | |
| AWG cross-section | AWG 17 to 15 | |
| Length | 14.48 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
