170326-1 | AMP

Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, tin-plated, 170326-1

Order No.: 35P3721
EAN: 4099889626612
MPN:
170326-1

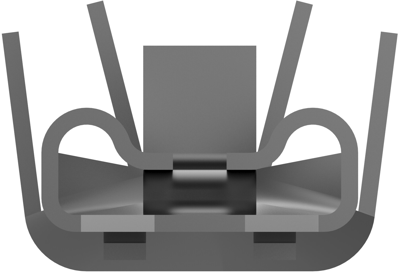

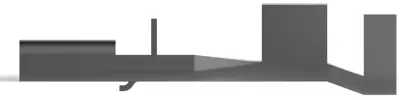

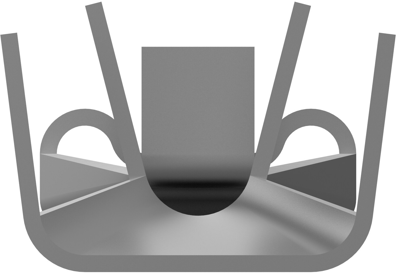

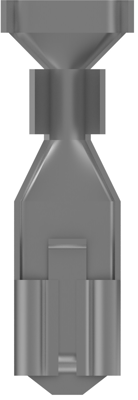

170326-1 AMP Receptacles Image 1
170326-1 AMP Receptacles Image 2
170326-1 AMP Receptacles Image 3
170326-1 AMP Receptacles Image 4
170326-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1095 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
1.09 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1095 €
50 pcs.
0.1012 €
100 pcs.
0.0940 €
250 pcs.
0.0857 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick disconnect, 170326-1, AMP

Quick disconnect, Receptacle, Wire size: 18- 14 AWG, Wire size: 0.82- 2.08 mm², Mating tab width 0.187 in [4.75 mm], Straight, Brass, Positive lock 187

Technical specifications
Filter Property Value
Connection crimp connection
Material brass, tin-plated
Suitable for 4.75 x 0.51 mm
Version flat plug sleeve
Isolated No
AWG cross-section AWG 18 to 14
Length 21.6 mm
Cable cross-section 0.82 to 2.08 mm²
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
